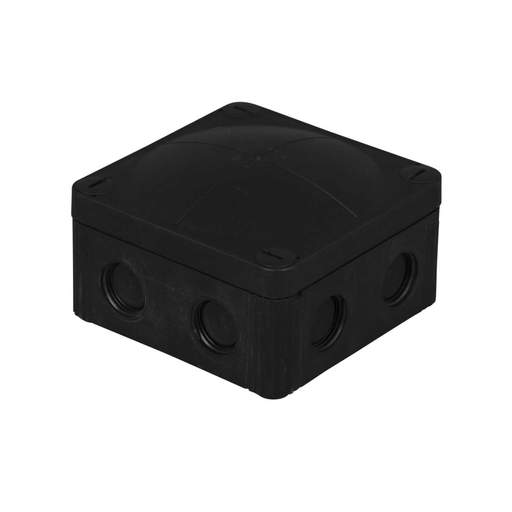

Wiska COMBI 407 95mm x 95mm x 60mm PVC Adaptable Box with 2.5mm Terminals Black IP66
Part Code: 10105603
Stock Code: 2073-6931
Wiska COMBI 407 95mm x 95mm x 60mm PVC Adaptable Box with 2.5mm Terminals Black IP66
Part Code: 10105603
Stock Code: 2073-6931
Features
- 6 x M20 threaded membrane entries and 1 X middle M20 threaded membrane entry with knockout to M25
- 2 x membrane cable entries through rear
- 4 x captive cover screws
- Mounting clip
- 5 x screwless box terminal 5 poles, 0.5 - 2.5mm² for solid wires and 1.5 - 2.5mm² for rigid stranded wires
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Depth
- 60mm
- Dimensions
- (L)95 mm x (W)95 mm x (D)60 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Length
- 95mm
- Material
- Polypropylene
- Mounting
- Surface
- Packaging Types
- Each
- Product Range
- Combi 407/SDK5/S
- Size
- 95mm x 95mm x 60mm
- Unspsc V18
- 39121303
- Unspsc V24
- 39121303
- Weight
- 0.13600kg
- Width
- 95mm
