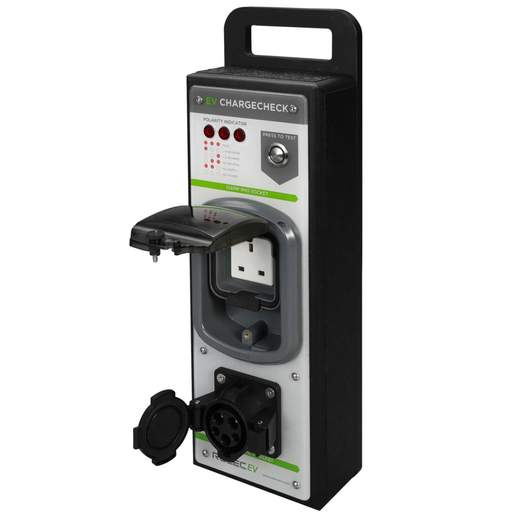

Rolec EV EV Charging Unit Tester
Part Code: EVTU0018
Stock Code: 2077-4464
Rolec EV EV Charging Unit Tester
Part Code: EVTU0018
Stock Code: 2077-4464
Features
- This unique unit is designed to carry out a full range of tests on all 3.6kW [16A] and 7.2kW [32A] single phase, Mode 3, J1772 [type 1] and IEC 62196 [type 2] EV charging points
- Simulates an electric vehicle
- Simulates and tests IEC 61851-1 Mode 3 communication compliance
- Tests J1772 [type 1] charging points
- Tests IEC 62196 [type 2] charging points
- Tests for correct live-neutral-earth polarity
- Provides test socket for earth loop impedance test
- Provides test socket for RCD / RCBO trip time and sensitivity test
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Charging Mode
- 3
- Compliance
- IET EV Regulations, BS7671 Wiring Regulations
- Depth
- 80mm
- Dimensions
- (H)450 mm x (W)148 mm x (D)80 mm
- Height
- 450mm
- Material
- Heavy Duty Polypropylene
- Packaging Types
- Each
- Product Range
- CHARGECHECK:EV
- Supplied With
- 1m J1772 (Type 1) to IEC 62196 (Type 2) Adapter Cable and Protective CHARGECHECK:EV Carry Bag
- Unspsc V18
- 25175003
- Unspsc V24
- 41113682
- Weight
- 5.00000kg
- Width
- 148mm
