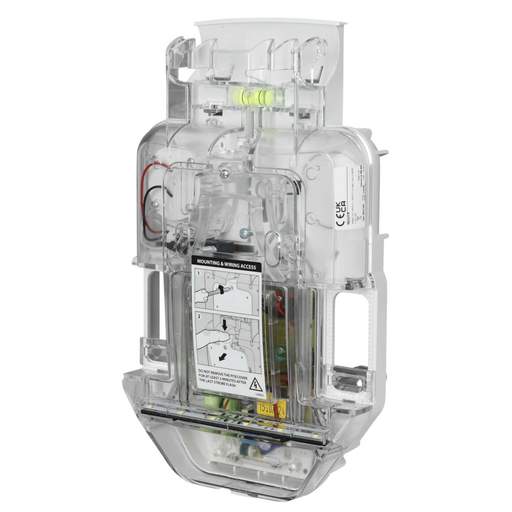

Texecom Premier Odyssey X-BE Grade 2 External Sounder Backplate with Backlight
Part Code: WDC-0001
Stock Code: 2077-7467
Texecom Premier Odyssey X-BE Grade 2 External Sounder Backplate with Backlight
Part Code: WDC-0001
Stock Code: 2077-7467
Features
- Odyssey X-BE backplate module sounder

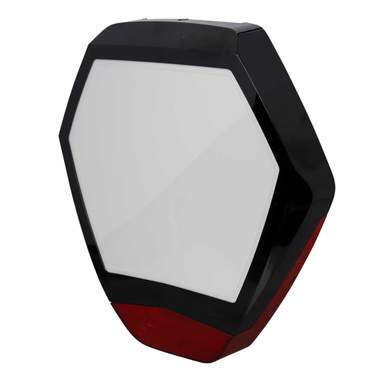

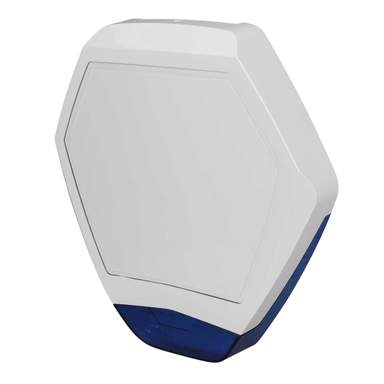

- X3 cover options available [sold separately]
- 109 dB [A] piezo sounder
- Alternating white LED indication
- Grade 2 Class IV
- Wall and cover tamper
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Battery Back Up
- Yes
- Battery Type
- Lithium
- Colour
- Clear
- Decibel Rating
- 109 dB [A]
- Depth
- 51mm
- Dimensions
- (H)287 mm x (W)170 mm x (D)51 mm
- Guarantee
- 2 Years
- Height
- 287mm
- Led Indication
- Yes
- Mounting
- Wall
- Packaging Types
- Each
- Product Range
- External Sounders
- Standards
- EN50131-4
- Strobe
- Yes
- Suitable For
- Premier Elite Systems
- Temperature Range
- -25 - 55°C
- Unspsc V18
- 46171606
- Unspsc V24
- 46171606
- Voltage Range
- 12 - 16 V DC
- Weight
- 0.95800kg
- Width
- 170mm
