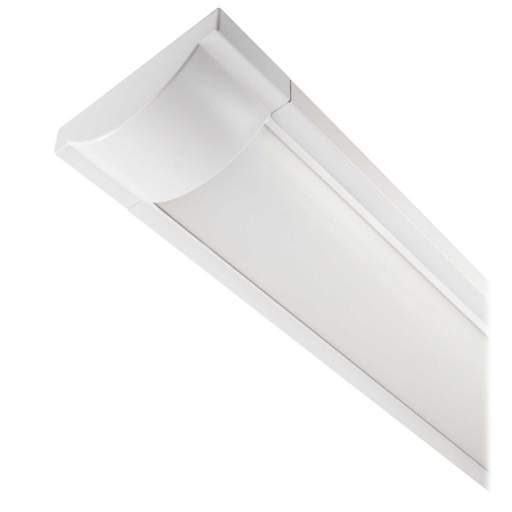

Fusion Aten2 48W 4ft LED Surface Mounted Tri-Colour Linear Fitting

Part Code: DLLEDSM1200CC

Stock Code: 2083-4962

Fusion Aten2 48W 4ft LED Surface Mounted Tri-Colour Linear Fitting

Part Code: DLLEDSM1200CC

Stock Code: 2083-4962

Delivery

11 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Interchangeable between 3000, 4000 or 6000±200K (warm white, cool white or daylight white)
  • Lumen output: 3600 lm [3000K] WW, 4000 lm [4000K] CW, 3800 lm [6000K] DW
  • Glass free solution
  • Aluminium body with powder coated finish
  • UV stabilised to prevent discolouring
  • PC end caps
  • PMMA opal diffuser
  • LED driver included

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Fusion
Beam Angle
110°
Cable Entry
Via End Cap and Centre
Class Type
Class 1
Colour
White
Colour Rendering Index(Cri)
80
Colour Temperature
Selectable - 3000/4000/6000 K
Compliance
CE, RoHS
Depth
45mm
Dimensions
(L)1194 mm x (W)133 mm x (D)45 mm
Dimmable
No
Emergency
No
Energy Saving
Yes
Finish
White
Guarantee
2 Years
IP Rating
IP20
Lamp Life
30000h
Lamp Type
Integrated LED
Led Type
SMD 2835
Length
1194mm
Lens Colour
Opal
Lumens Output
3600lm 4000lm 3800lm
Material
Aluminium / PMMA
Maximum Operating Temperature
+45°C
Minimum Operating Temperature
-10°C
Mounting
Surface
Number of LEDs
540
Packaging Types
Box
Power Rating
48W
Product Range
Aten2
Sensor
No
Suitable For
Schools, Office, Retail and Commercial Buildings
Supplied With
LED Driver
Unspsc V18
39111544
Voltage Rating
230V
Weight
1.595kg
Width
133mm
