Tamco Fast Wire Suspension Kit
Part Code: TSUSP/3M/LM/YH
Stock Code: 2088-4816
Tamco Fast Wire Suspension Kit
Part Code: TSUSP/3M/LM/YH
Stock Code: 2088-4816
Features

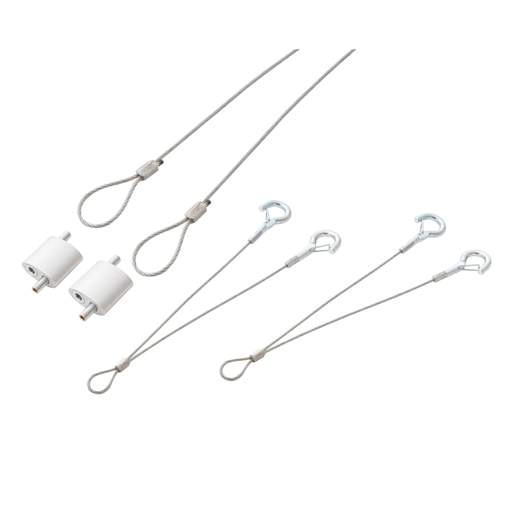

- Kit contains 2 x 3m 1.5mm steel cables with loops, 2 x loop makers and 2 x 500mm Y cables with spring loaded hooks
- All loop makers and clutches should be used with the 1.5mm steel cable
- The working load of the loop maker is 25kg
- Safety factor 5:1
- The working load of the clutch [WG004] is 17kg
- The ceiling fixing must be installed correctly and by a qualified fitter into a reliable material to achieve the working load
- Make sure to use a reliable and secure fixing for the object being suspended e.g. the nut provided with the WG004 clutch
- Not to be used outside
- Make sure the wire has no defects before use. Use only for static loads
- A minimum of two suspensions are recommended per item being suspended
- Always remove or support the load before making any adjustments
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Dimensions
- (L)3 m
- Guarantee
- 1 Year
- Kit Contents
- 2 x 3m 1.5mm Steel Cables with Loops, 2 x Loop Makers and 2 x 500mm Y Cables with Spring Loaded Hooks
- Length
- 3m
- Load Capacity
- 25kg
- Packaging Types
- Kit
- Size
- 1.5 m
- Unspsc V18
- 39111831
- Unspsc V24
- 39111831
- Weight
- 0.12300kg
