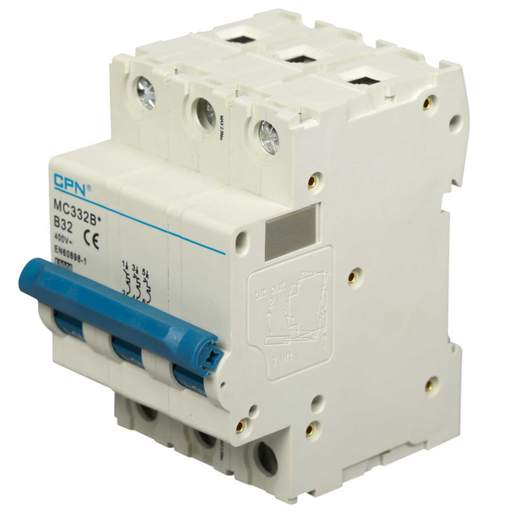

Cudis MC 32A Triple Pole 6kA B Curve MCB
Part Code: MC332B
Stock Code: 2122-3384
Cudis MC 32A Triple Pole 6kA B Curve MCB
Part Code: MC332B
Stock Code: 2122-3384
Features
- For use in the Cudis range of consumer units and enclosures and for 3-phase installations
- Satisfies most requirements for domestic, commercial and industrial applications
- Protection against overload and short circuit
- Contact position indicator
- 6kA interrupt capacity
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Cudis
- Current Rating
- 32A
- Depth
- 75mm
- Dimensions
- (H)81 mm x (W)54 mm x (D)75 mm
- Guarantee
- 5 Years
- Height
- 81mm
- Incoming Terminal Capacity
- 25mm²
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- MC Range
- Short Circuit Rating
- 6kA
- Standards
- EN 60898
- Tripping Characteristics
- B Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V 415V
- Weight
- 0.00100kg
- Width
- 54mm
