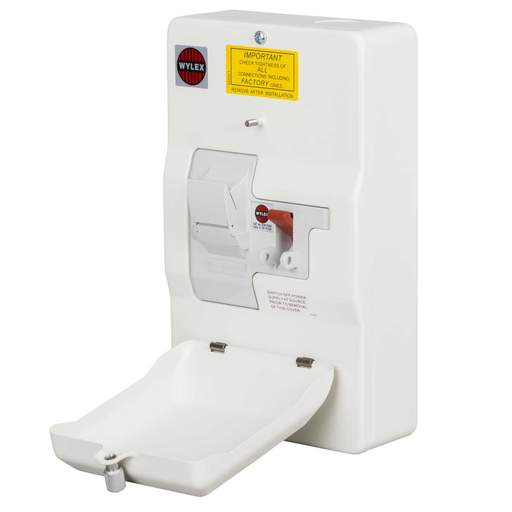

Wylex 100A SP+N Metal Switch Fuse
Part Code: DSF100M
Stock Code: 2123-0671
Wylex 100A SP+N Metal Switch Fuse
Part Code: DSF100M
Stock Code: 2123-0671
Features
- Metal door and robust metal enclosure, 1.0mm thick steel with low smoke and fume epoxy paint finish
- 32mm diameter standard knock out for cable gland [top and bottom]
- Dual screw terminals throughout
- Live and Neutral cable capacity 16mm² min, 35mm² max
- Supplied complete with fuse in a rotating carrier for easy withdrawal
- Lockable for safe isolation
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wylex
- Current Rating
- 100A
- Depth
- 111mm
- Dimensions
- (H)302 mm x (W)178 mm x (D)111 mm
- Guarantee
- 1 Year
- Height
- 302mm
- Mounting
- Surface
- Number of Poles
- Single Pole and Neutral
- Packaging Types
- Each
- Standards
- BS EN 60947-3
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 230V
- Weight
- 2.94000kg
- Width
- 178mm
