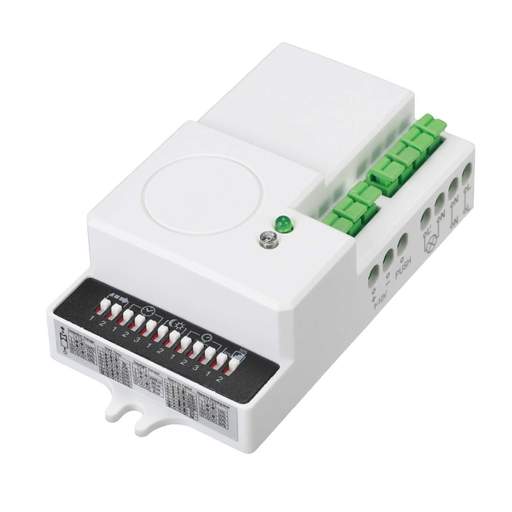

Greenbrook Orion Microwave Presence Detector 1-10V Dimmable
Part Code: ODM203
Stock Code: 2137-5925
Greenbrook Orion Microwave Presence Detector 1-10V Dimmable
Part Code: ODM203
Stock Code: 2137-5925
Features
- 1-10V dimmable
- 360° detection angle
- Dimming levels [10%, 20%, 30% or 50%]
- Lux settings [2 lux, 10 lux, 50 lux or 2000 lux]
- Hold time settings [5s, 30s, 1min, 5mins, 10mins, 20mins or 30mins]
- Detection area settings [10%, 50%, 75% or 100%]
- Ceiling:1 to 8m [radius] adjustable detection distance
- Wall: 5 to 15m adjustable detection distance
- 300W LED switch load
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Depth
- 25.5mm
- Detection Angle
- 360°
- Detection Range
- 8m
- Dimensions
- (L)77.7 mm x (W)45 mm x (D)25.5 mm
- Guarantee
- 1 Year
- IP Rating
- IP20
- Length
- 77.7mm
- Lux Adjustment
- Yes
- Maximum Switching Load
- 1200W Fluorescent, 300W LED
- Mounting
- Surface
- Packaging Types
- Each
- Product Range
- Orion
- Sensor
- Microwave
- Timer Adjustment
- 5 secs - 30 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.08000kg
- Width
- 45mm
