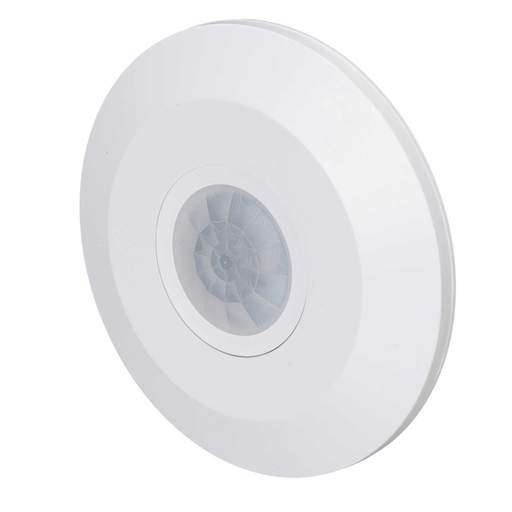

Greenbrook Orion Slimline Surface Mounted Ceiling PIR Detector
Part Code: OD101
Stock Code: 2137-5934
Greenbrook Orion Slimline Surface Mounted Ceiling PIR Detector
Part Code: OD101
Stock Code: 2137-5934
Features
- Surface mounted, no cut-out required
- Slimline PIR motion sensor
- 360° detection angle
- Adjustable lux sensor and time delay
- Up to 6m detection distance
- 2.2 to 4m mounting height
- 1000W LED switch load
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Depth
- 24.3mm
- Detection Angle
- 360°
- Detection Range
- 6m
- Diameter
- 115mm
- Dimensions
- (Dia)115 mm x (D)24.3 mm
- Guarantee
- 1 Year
- IP Rating
- IP20
- Lux Adjustment
- Yes
- Maximum Switching Load
- 2000W Fluorescent, 1000W LED
- Mounting
- Ceiling / Surface
- Packaging Types
- Each
- Product Range
- Orion
- Sensor
- PIR
- Timer Adjustment
- 10 secs - 15 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.14000kg
