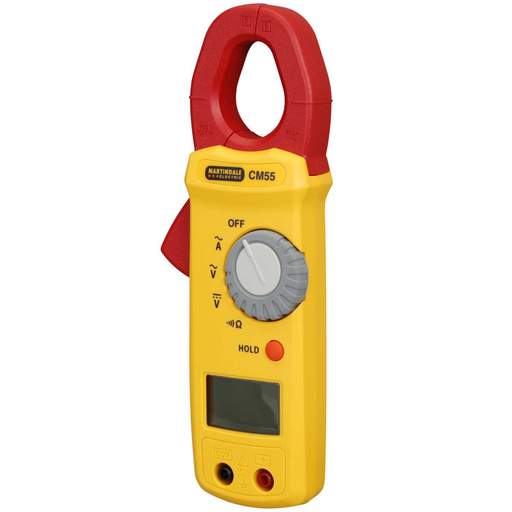

Martindale CM55 400A Digital Clamp Meter
Part Code: CM55
Stock Code: 2142-1033
Martindale CM55 400A Digital Clamp Meter
Part Code: CM55
Stock Code: 2142-1033
Features
- Pocket sized high performance AC clamp meter
- Current measurement up to 400A AC
- Voltage measurement up to 600V AC/DC
- Resistance with continuity test up to 400Ω
- Accurate and reliable current measurement down to 10mA resolution without the need to break into the circuit
- Thumbwheel for single handed operation
- Hold function useful for when working in areas with restricted access
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Martindale
- Ac Current Measurement
- 400A
- Ac Voltage Measurement
- 600V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Voltage Measurement
- 600V DC
- Depth
- 32mm
- Dimensions
- (H)203 mm x (W)75 mm x (D)32 mm
- Display Count
- 3999
- Display Type
- LCD
- Guarantee
- 2 Years
- Height
- 203mm
- Humidity Range
- Up to 80% RH
- Jaw Opening Capability
- 25.4mm
- Number of Batteries
- 2
- Operating Temperature Range
- 0 - 40°C
- Packaging Types
- Each
- Previously Known As
- MARCM55
- Product Range
- Clamp Meter
- Resistance Measurement
- 400 Ω
- Safety Range
- CAT III 600V
- Standards
- BS EN 61326-1
- Storage Temperature Range
- -10 - 60°C
- Supplied With
- Leads (TL16), Soft Case, Batteries and Manual
- Type
- AC Clamp Meter
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Video Url
- https://www.youtube.com/embed/9fZ5Xkmx4u8
- Weight
- 0.23700kg
- Width
- 75mm
