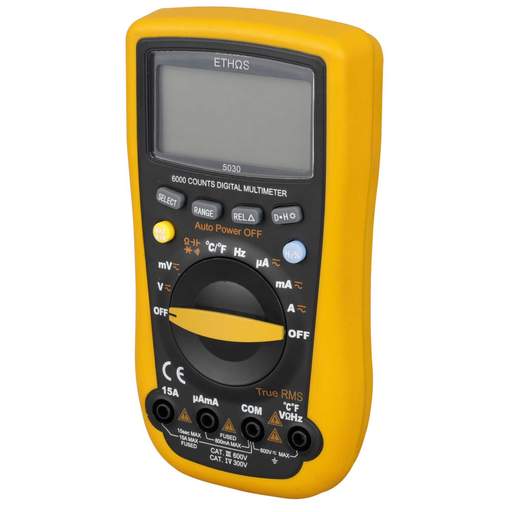

Ethos 5030 Auto Ranging Digital Multimeter
Part Code: ETHOS 5030
Stock Code: 2148-9301
Ethos 5030 Auto Ranging Digital Multimeter
Part Code: ETHOS 5030
Stock Code: 2148-9301
Features
- True RMS auto ranging digital multimeter
- AC/DC voltage measurement ranges 60mV - 600V auto ranging
- AC/DC current measurement ranges 600μA - 15A auto ranging
- Resistance measurement ranges 600Ω - 60MΩ auto ranging
- Capacitance, temperature, frequency and duty cycle ranges
- Diode and audible continuity test
- Analogue / bar graph digital display
- Test lead connection indicator
- Backlight
- Data hold
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Ethos
- Ac Current Measurement
- 15A
- Ac Voltage Measurement
- 600V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- PP3
- Battery Type
- Alkaline
- Capacitance Measurement
- 999.99
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Current Measurement
- 15A DC
- Dc Voltage Measurement
- 600V DC
- Depth
- 40mm
- Dimensions
- (H)177 mm x (W)92 mm x (D)40 mm
- Display Count
- 6000
- Display Type
- LCD
- Frequency Measurement
- 9.999 MHz
- Fused
- Yes
- Guarantee
- 2 Years
- Height
- 177mm
- Number of Batteries
- 1
- Packaging Types
- Each
- Product Range
- Ethos Multimeters
- Resistance Measurement
- 60 MΩ
- Safety Range
- CAT II 1000V, CAT III 600V
- Standards
- IEC 1010
- Supplied With
- Red / Black Test Leads and 1 x 9V Battery
- Temperature Range
- -20 - 1000°C
- Type
- Professional Digital Multimeter
- Unspsc V18
- 41113630
- Unspsc V24
- 41113630
- Weight
- 0.25000kg
- Width
- 92mm
