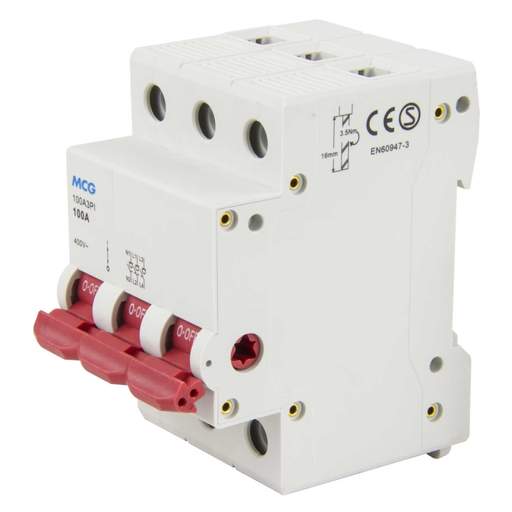

MCG 100A Triple Pole Switch Disconnector Isolator
Part Code: 100A3PI
Stock Code: 2163-3178
MCG 100A Triple Pole Switch Disconnector Isolator
Part Code: 100A3PI
Stock Code: 2163-3178
Features
- Suitable for isolation to IEC 60947-3
- Insulated DIN rail clips
- Ergonomic hand grip for easy installation
- New RED switch for clearer indication
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Bidirectional
- Yes
- Compliance
- UKCA, CE
- Current Rating
- 100A
- Depth
- 66mm
- Dimensions
- (H)82.5 mm x (W)54 mm x (D)66 mm
- Guarantee
- 1 Year
- Height
- 82.5mm
- Incoming Terminal Capacity
- 35 mm²
- Material
- Plastic / Metal
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Outgoing Terminal Capacity
- 35 mm²
- Packaging Types
- Each
- Standards
- IEC/EN 60947-3
- Torque Settings
- 3.5Nm
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 415V
- Weight
- 0.31800kg
- Width
- 54mm
