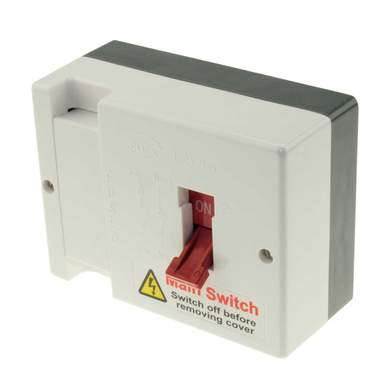

Scolmore Click 80A Fused Main Switch
Part Code: DB700
Stock Code: 0130-9492
Scolmore Click 80A Fused Main Switch
Part Code: DB700
Stock Code: 0130-9492
Features
- Click essentials profile
- 80A Fused main switch
- Supplied with a 80A Bussman fuse as standard
- Compatible with Lawson, MEM and GE fuses
- Conforms to BS 60947
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 80A
- Depth
- 54mm
- Dimensions
- (H)81 mm x (W)128 mm x (D)54 mm
- Guarantee
- 1 Year
- Height
- 81mm
- Incoming Terminal Capacity
- 25mm²
- Mounting
- Surface
- Number of Poles
- Single Pole and Neutral
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- Essentials
- Standards
- BS 60947
- Supplied With
- Fuse
- Type
- Fused Main Switch
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 230V
- Weight
- 0.55200kg
- Width
- 128mm
