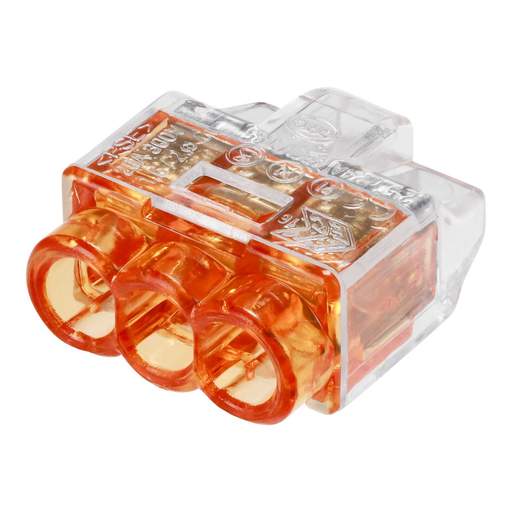

Hellermann HelaCon Plus 3 Way Connector (Box of 100)
Part Code: 148-90037
Stock Code: 2179-7269
Hellermann HelaCon Plus 3 Way Connector (Box of 100)
Part Code: 148-90037
Stock Code: 2179-7269
Features
- Low insertion force - easy to use, saves time on installation
- Easy access to voltage test entry and innovation port shape design
- Correct installation can be visually checked through transparent housing
- Different colour codes for easy identification of size
- Allows different conductor diameters in each entry
- Safe application, installation and maintenance
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Orange
- Current Rating
- 24A
- Depth
- 16.5mm
- Dimensions
- (H)7.7 mm x (W)15.1 mm x (D)16.5 mm
- Guarantee
- 1 Year
- Height
- 7.7mm
- Material
- Polycarbonate
- Maximum Operating Temperature
- 85°C
- Minimum Operating Temperature
- -30°C
- Number of Ways
- 3
- Packaging Types
- Box
- Previously Known As
- HCPM-3
- Product Range
- HelaCon Plus Mini
- Standards
- HF and RoHS
- Suitable For
- Solid Wire 0.5 to 2.5mm², Stranded 1.0 to 2.5mm²
- Terminal Capacity
- 2.5mm²
- Unspsc V18
- 39121409
- Unspsc V24
- 39121409
- Voltage Rating
- 450V AC
- Weight
- 0.004kg
- Width
- 15.1mm
- Wire Combination Range
- Solid Wire 0.5 to 2.5mm², Stranded 1.0 to 2.5mm²
