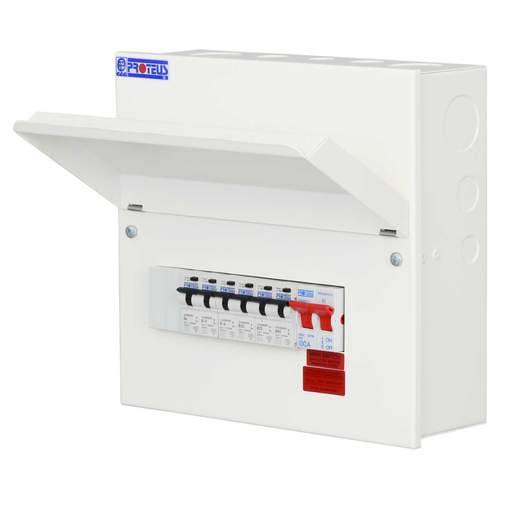

Proteus 8 Way 100A Isolator Incomer Metal Clad Consumer Unit with 6 x RCBOs
Part Code: ACP8/6RMU
Stock Code: 2182-1671
Proteus 8 Way 100A Isolator Incomer Metal Clad Consumer Unit with 6 x RCBOs
Part Code: ACP8/6RMU
Stock Code: 2182-1671
Features
- Supplied with a quantity of 6 x 6kA Type B RCBOs
- RCBOs supplied are 1 x 6A, 1 x 10A, 1 x 16A, 1 x 20A, 1 x 32A and 1 x 40A
- Amendment 3 compliant metalclad consumer unit
- Hinged door with cam lock
- Optional keylock available [AKL]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Selection of Knockouts / Cutouts
- Compliance
- BS EN 61439-3
- Current Rating
- 100A
- Depth
- 119mm
- Dimensions
- (H)256 mm x (W)273 mm x (D)119 mm
- Door Type
- Top Hinged
- Guarantee
- 10 Years
- Height
- 256mm
- IP Rating
- IP4XC
- Incoming Device
- 100A DP Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 12
- Number of Outgoing Ways
- 8
- Packaging Types
- Each
- Standards
- BS EN 61439-3
- Supplied With
- RCBOs supplied: 1 x 6A, 1 x 10A, 1 x 16A, 1 x 20A, 1 x 32A and 1 x 40A
- Surge Protection Fitted
- No
- Surge Protection Ready
- Yes
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 3.15300kg
- Width
- 273mm
