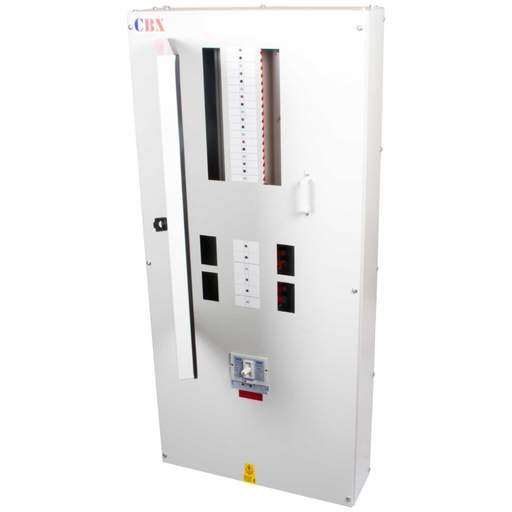

Proteus 12 + 4 Way TP+N MCB Combination Board with 250A Isolator Incomer
Part Code: CBX124/I250
Stock Code: 2183-5183
Proteus 12 + 4 Way TP+N MCB Combination Board with 250A Isolator Incomer
Part Code: CBX124/I250
Stock Code: 2183-5183
Features
- 12 x Standard TP Ways for up to 63A MCB's, plus 4 x Larger Frame TP Ways for 80A to 125A MCB's
- CBX range offers versatile use of standard size MCB's upto 63A, RCBO's upto 45A and larger frame size MCB's 80A to 125A
- Ample cabling space with twin earth and neutral bars for ease of use
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Board Configuration
- 12 4
- Cable Entry
- Removable Top and Bottom End Plates
- Current Rating
- 250A
- Depth
- 170mm
- Dimensions
- (H)1300 mm x (W)600 mm x (D)170 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Height
- 1300mm
- IP Rating
- IP3X
- Incoming Device
- 250A TP Non Auto Isolator
- Incoming Terminal Capacity
- 120mm²
- Material
- 1.6mm Cold rolled steel with an epoxy paint finish to RAL7035 matt grey
- Mounting
- Surface
- Number of Outgoing Ways
- 16
- Number of Outgoing Ways 80 Ato125 A
- 4
- Number of Outgoing Ways Upto63 A
- 12
- Packaging Types
- Each
- Product Range
- CBX Range
- Standards
- BS EN 61439 - 1&2
- Supplied With
- TP Non Auto Isolator 250A
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V 400V
- Weight
- 49.00000kg
- Width
- 600mm
