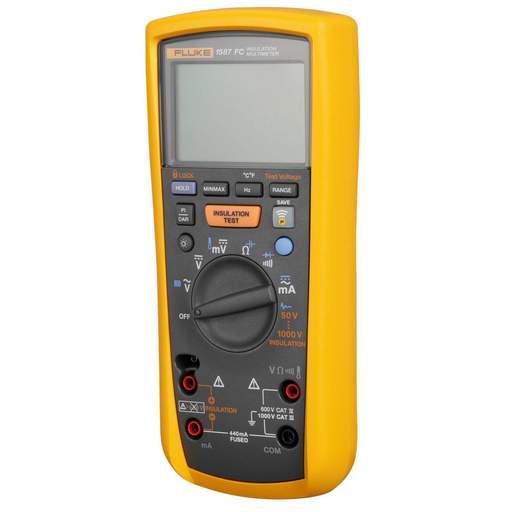

Fluke 1587FC Digital Insulation and Continuity Multimeter
Part Code: FLUKE 1587FC
Stock Code: 2189-8585
Fluke 1587FC Digital Insulation and Continuity Multimeter
Part Code: FLUKE 1587FC
Stock Code: 2189-8585
Features
- insulation tester and a TRMS digital multimeter in one
- Continuity resistance readings from 0.00Ω - 19.99kΩ
- Insulation resistance measurements up to 2GΩ
- Insulation tests at 50V, 100V, 250V, 500V and 1000V
- Auto power off
- AC/DC voltage, DC mV, AC/DC mA, resistance, continuity, capacitance, diode, temperature and frequency test ranges
- Complete with K-type thermocouple
- Three year standard warranty with extension to five years if registered within 45 days of purchase
- Fluke Connect enabled - wirelessly interface with your smartphone to expand meter functionality
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 400mA
- Ac Voltage Measurement
- 1000V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Life
- 1000h
- Battery Size
- AA
- Battery Type
- Alkaline
- Capacitance Measurement
- 9999µF
- Compliance
- CE
- Continuity Range
- 0.01 Ω - 999 Ω
- Dc Current Measurement
- 400mA
- Dc Voltage Measurement
- 1000V DC
- Depth
- 50mm
- Dimensions
- (L)203 mm x (H)50 mm x (W)100 mm x (D)50 mm
- Display Type
- LCD
- Guarantee
- 3 Years
- Height
- 50mm
- Humidity Range
- 40 - 95% RH
- IP Rating
- IP40
- Insulation Resistance Measuring Range
- 0.01 MΩ - 2.00 GΩ
- Insulation Test Voltage
- 50V / 100V / 250V / 500V / 1000V
- Length
- 203mm
- Number of Batteries
- 4
- Operating Temperature Range
- -20 - 55°C
- Packaging Types
- Each
- Product Range
- Insulation Multimeter
- Safety Range
- CAT III 1000V, CAT IV 600V
- Standards
- IEC/EN 61010-1
- Storage Temperature Range
- -40 - 60°C
- Supplied With
- Remote Probe, Test Leads and Probes, Alligator Clips, K-Type Thermocouple
- Temperature Range
- -40 - 537°C
- Type
- Insulation and Continuity Multimeter
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Weight
- 0.75000kg
- Width
- 100mm
