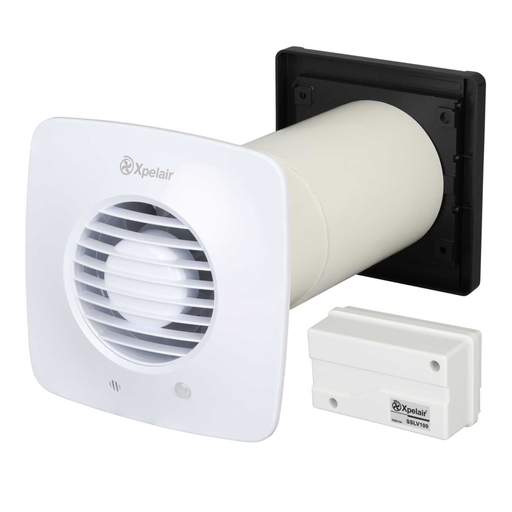

Xpelair LV100S 100mm 4" 2 Speed SELV Fan with Wall Kit
Part Code: 93031AW
Stock Code: 2196-6355
Xpelair LV100S 100mm 4" 2 Speed SELV Fan with Wall Kit
Part Code: 93031AW
Stock Code: 2196-6355
Features
- Extremely quiet running - only 22dB[A] @ 3m at low speed
- Stylish traditional grille design available in square and round
- Supplied with wall fitting kit - complete one-box installation solution
- 2 speeds 15l/s and 21l/s - selectable at install
- Suitable for wall, ceiling, panel and window fitting
- Complies with building regulations Part F and L
- Includes 12V SELV transformer
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Xpelair
- Airflow Cubic Metresper Hour
- 54 / 76 m³/h
- Airflow Litresper Second
- 15 / 21 l/s
- Colour
- White
- Decibel Rating
- 22 / 34 dB[A] @ 3 m
- Depth
- 122mm
- Dimensions
- (H)178.5 mm x (W)178.5 mm x (D)122 mm
- Ducting Size
- 100mm
- Guarantee
- 2 Years
- Height
- 178.5mm
- Hole Size
- 100mm
- IP Rating
- IP4X
- Mounting
- Wall / Ceiling / Panel / Window
- Number of Speeds
- 2
- Operation Type
- Standard
- Packaging Types
- Each
- Power Rating
- 5.5W 11.8W
- Product Range
- Simply Silent
- Suitable For
- Domestic and Commercial
- Supplied With
- Fan, Outer Grille, Telescopic Wall Tube, Gasket and Foam Strips
- Transformer
- Yes
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 12V
- Weight
- 1.98800kg
- Width
- 178.5mm
- Zone Rating
- Zone 1
