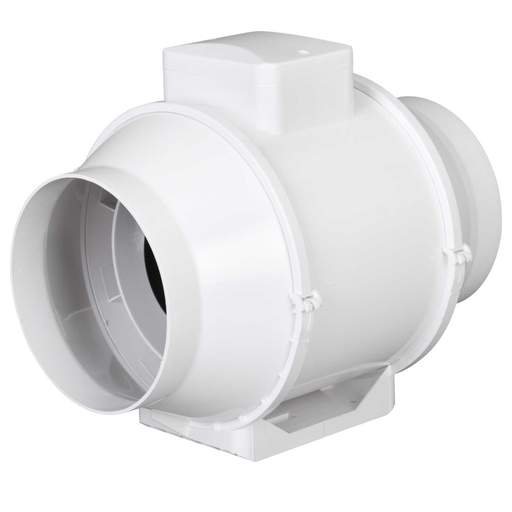

Xpelair XIMX150T 150mm 6" Inline Mixed Flow Fan with Timer
Part Code: 93084AW
Stock Code: 2196-6388
Xpelair XIMX150T 150mm 6" Inline Mixed Flow Fan with Timer
Part Code: 93084AW
Stock Code: 2196-6388
Features
- Overrun timer adjustable from 2 - 30 minutes
- Two speed
- Operated by remote switch
- Supplied with convenient installation mounting cradle
- Lubricated for life, maintenance free motors with thermal cut out protection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Xpelair
- Airflow Cubic Metresper Hour
- 405 / 520 m³/h
- Airflow Litresper Second
- 133 / 144 l/s
- Colour
- White
- Decibel Rating
- 33 / 44 dB[A] @ 3 m
- Diameter
- 150mm
- Dimensions
- (L)295 mm x (Dia)150 mm x (H)250 mm
- Ducting Size
- 150mm
- Guarantee
- 2 Years
- Height
- 250mm
- IP Rating
- IPX4
- Length
- 295mm
- Number of Speeds
- 2
- Operation Type
- Timer [2 - 30 mins]
- Packaging Types
- Each
- Power Rating
- 30W 60W
- Product Range
- Xpelair
- Suitable For
- Commercial
- Supplied With
- Mounting Cradle
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 3.19000kg
