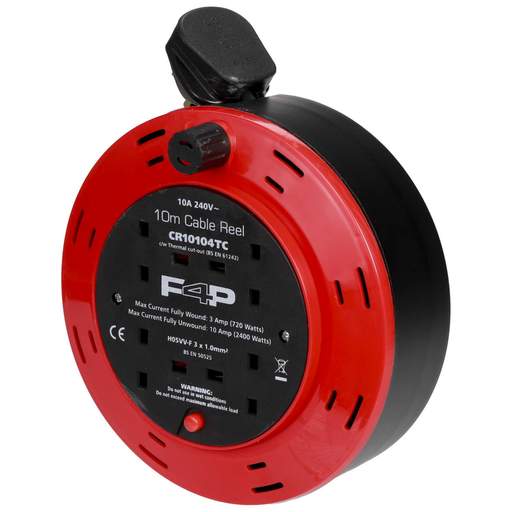

F4P 10A 10m 230V 4 Gang Cassette Cable Reel
Part Code: CR10104TC
Stock Code: 2211-4477
F4P 10A 10m 230V 4 Gang Cassette Cable Reel
Part Code: CR10104TC
Stock Code: 2211-4477
Features
- Suitable for a variety of domestic and commercial power solutions
- Thermal cut-out gives extra protection
- Sockets: 4 x 10A 230V
- Max current fully wound: 3A [720W]
- Max current fully unwound: 10A [2400W]
- Cable: H05VV-F 3 x 1.0mm²
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Cable Colour
- Black
- Cable Length
- 10m
- Cable Size
- 1.0mm²
- Cable Type
- 1mm 3 Core PVC Flex
- Colour
- Red/Black
- Compliance
- UKCA, CE
- Current Rating
- 10A
- Depth
- 99mm
- Diameter
- 195mm
- Dimensions
- (Dia)195 mm x (D)99 mm
- Fused
- Yes
- Guarantee
- 1 Year
- Mounting
- Free Standing
- Number of Gangs
- 4
- Packaging Types
- Each
- Retractable
- Yes
- Safety Cut Out
- Thermal Cut-Out
- Socket Type
- Domestic
- Standards
- BS EN 50525, BS EN 61242
- Switched Unswitched
- Unswitched
- Type
- Cassette
- Unspsc V18
- 39121440
- Unspsc V24
- 39121440
- Voltage Rating
- 230V
- Weight
- 3.00000kg
