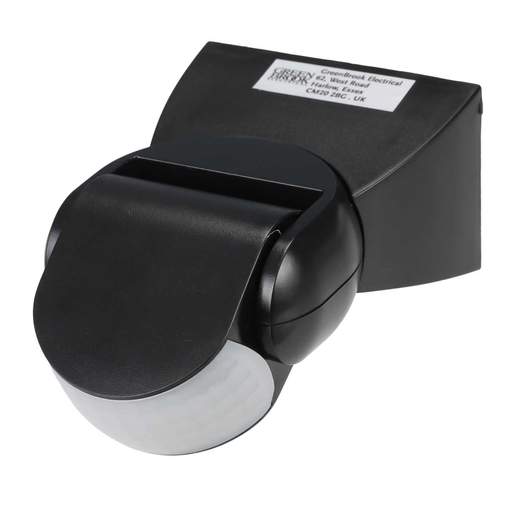

Greenbrook Orion 180° PIR Motion Detector IP65 Black
Part Code: OD103B
Stock Code: 2233-7560
Greenbrook Orion 180° PIR Motion Detector IP65 Black
Part Code: OD103B
Stock Code: 2233-7560
Features
- External PIR motion sensor
- Multi directional head
- 180° detection angle
- Up to 12m detection distance
- Adjustable lux sensor and time delay
- 1.8 to 2.3m mounting height
- 300W LED switch load
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Depth
- 119.5mm
- Detection Angle
- 180°
- Detection Range
- 12m
- Dimensions
- (H)51.5 mm x (W)80 mm x (D)119.5 mm
- Guarantee
- 1 Year
- Height
- 51.5mm
- IP Rating
- IP65
- Lux Adjustment
- Yes
- Maximum Switching Load
- 1200W Tungsten, 300W LED
- Mounting
- Wall
- Packaging Types
- Each
- Product Range
- Orion
- Sensor
- PIR
- Timer Adjustment
- 10 secs - 15 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.195kg
- Width
- 80mm
