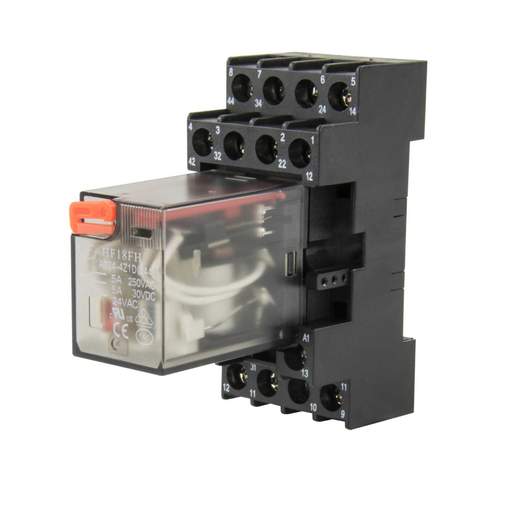

Crompton 14 Pin 24V AC 5A 4 Pole Changeover Miniature Plug In Relay with Base
Part Code: CC14MR BASE 24VACBP
Stock Code: 2235-9478
Crompton 14 Pin 24V AC 5A 4 Pole Changeover Miniature Plug In Relay with Base
Part Code: CC14MR BASE 24VACBP
Stock Code: 2235-9478
Features
- 5A switching capacity
- 1.5kV dielectric strength between coil and contact
- 4 pole changeover contacts
- Contact material silver alloy
- RoHS compliant
- With lockable push to test button, flag indicator and built-in LED as standard
- Dust protected
- Approvals UL/CUR, TUV and CQC
- DIN Rail mounted socket included
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Changeover
- Yes
- Coil Voltage
- 24V AC
- Colour
- Transparent
- Compliance
- CE, UL/CUR, TUV, CQC
- Contact Configuration
- 4 CO
- Current Rating
- 5A
- Depth
- 60mm
- Dimensions
- (H)63 mm x (W)30.3 mm x (D)60 mm
- Guarantee
- 1 Year
- Height
- 63mm
- Indication Lamp
- Yes
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In
- Number of Pins
- 14
- Number of Poles
- 4 Pole
- Packaging Types
- Pack
- Supplied With
- DIN Rail Mounted Socket
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 24V
- Weight
- 0.00900kg
- Width
- 30.3mm
