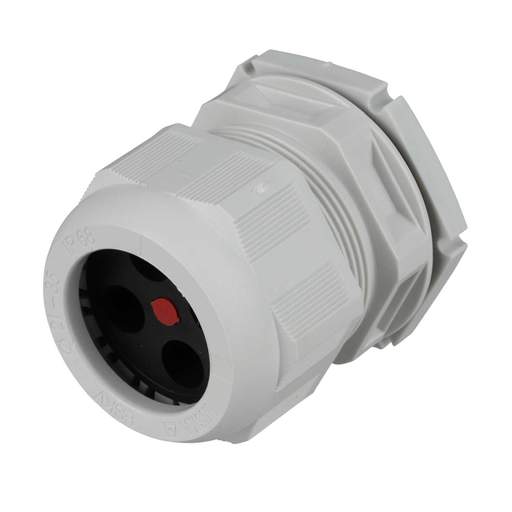

Wiska 50mm Plastic Cable Gland LSF with Multiple Insert, Locknut and Blank IP68
Part Code: 10106246
Stock Code: 2239-8934
Wiska 50mm Plastic Cable Gland LSF with Multiple Insert, Locknut and Blank IP68
Part Code: 10106246
Stock Code: 2239-8934
Features
- Flame protection Glow wire test 750° C acc. to EN 60695-2-11
- Temperature range -40°C to 100°C, interm. up to approx. 120°C
- Vibration resistant
- VDE - Approval: -20°C - 100°C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 21 - 35mm
- Colour
- Grey
- Guarantee
- 1 Year
- IP Rating
- IP68
- Installation Torque
- 30Nm
- Material
- Polyamide Body - EPDM Sealing Gasket
- Packaging Types
- Each
- Size
- M50
- Suitable For
- 4 x 25 mm² + 1 x 16 mm²
- Thread Pitch
- 1.5
- Thread Size
- 50mm
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.116kg
