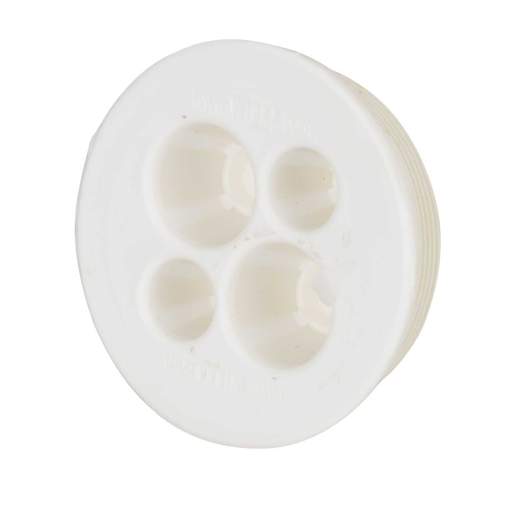

Wiska TKS 32 Multiple Membrane Entry (Pack of 10)
Part Code: TKS 32
Stock Code: 2239-9204
Wiska TKS 32 Multiple Membrane Entry (Pack of 10)
Part Code: TKS 32
Stock Code: 2239-9204
Features
- It is a membrane with 4 entries giving IP66 protection and cable retention for quick and easy installation
- Quick and easy installation
- Simply push the TKS into the unit and insert cable
- Ideal for both internal and external applications
- Flush fitting saves on space, and with no additional locknut you also save on time and money
- TKS 32: Amendment 3 / 17th Edition
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Diameter
- 37mm
- Dimensions
- (Dia)37 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Material
- TPE and PP (V0 acc. UL94)
- Operating Temperature Range
- -40 - 60°C
- Packaging Types
- Pack
- Standards
- EN 62444, EN 60695-2-11
- Suitable For
- 2 x 25 mm² + 2 x 16 mm²
- Thread Size
- 32mm
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.007kg
