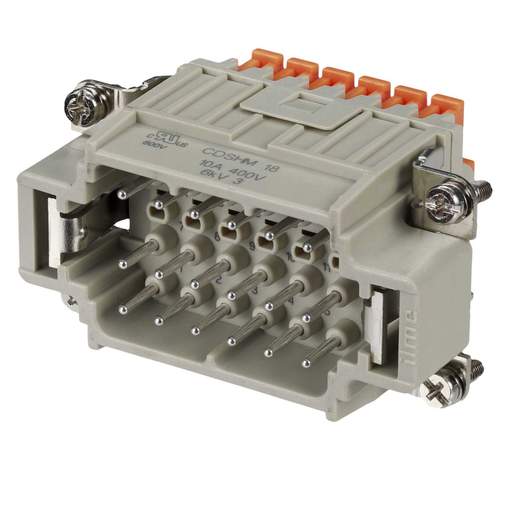

Ilme 10A 18 Pole + E Male Insert Spring Terminal Connector
Part Code: CDSHM18
Stock Code: 2240-7181
Ilme 10A 18 Pole + E Male Insert Spring Terminal Connector
Part Code: CDSHM18
Stock Code: 2240-7181
Features
- CDSH series standard male insert fits size 57.27 enclosures and is 18 pin + ground
- Voltage rating of 400V
- Rated current of 10A
- SQUICH® spring terminal connection without tools
- IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 10A
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Glass Reinforced Thermoplastic Silver Plated Contacts
- Number of Poles
- 18P+E
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Product Range
- CDSH Series Insert
- Size
- 57.27
- Standards
- EN 61984:2009-06
- Type
- Male
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 400V
- Weight
- 0.0873kg
