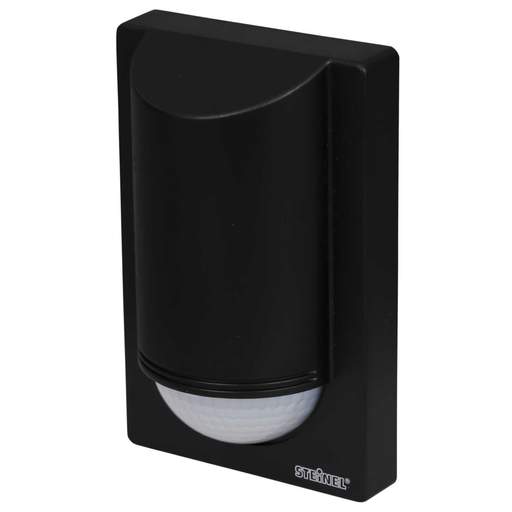

Steinel IS2180 ECO 180° Motion Detector Black
Part Code: 034702
Stock Code: 2248-7620
Steinel IS2180 ECO 180° Motion Detector Black
Part Code: 034702
Stock Code: 2248-7620
Features
- PIR wall sensor for outdoor installations
- 180° detection angle with up to 12m detection range
- Maximum load: 2000W, max. 6 x LEDs
- Suitable for wall and corner installations
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 2
- Colour
- Black
- Compliance
- CE
- Depth
- 55mm
- Detection Angle
- 180°
- Detection Range
- 12m
- Dimensions
- (H)120 mm x (W)78 mm x (D)55 mm
- Finish
- Black
- Guarantee
- 5 Years
- Height
- 120mm
- IP Rating
- IP54
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 2000W, LED - 64W
- Mounting
- Wall
- Mounting Height
- 2m
- Packaging Types
- Each
- Power Rating
- 2000W
- Product Range
- IS2180 ECO
- Sensor
- PIR
- Timer Adjustment
- 10 secs - 15 mins
- Type
- PIR Switch
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.30000kg
- Width
- 78mm
