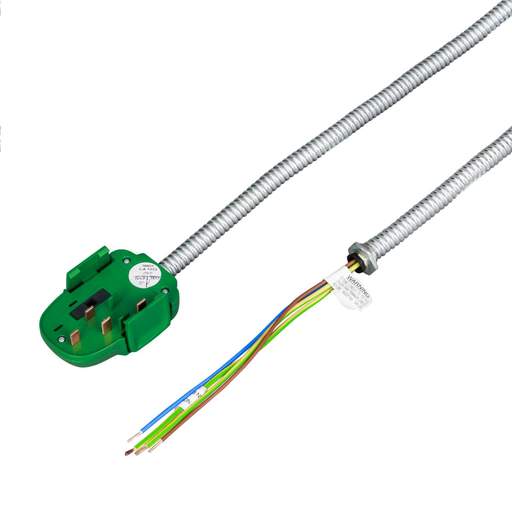

Electrak Legrand 3m 13A Fused Green TO 2P+E+CE - E25 UAE
Part Code: JP2314R
Stock Code: 2259-1375
Electrak Legrand 3m 13A Fused Green TO 2P+E+CE - E25 UAE
Part Code: JP2314R
Stock Code: 2259-1375
Features
- 13A fused high integrity CE, L, N, PE
- Tap-off units 3m
- Tap-off length is determined by the cable and not the conduit length, e.g. a 3 m tap-off has 3 m of cable and 2.6 m of flexible metal conduit
- Tap-off units in excess of 3 m should only be used if they contain a fuse or if the busbar run is protected by a protective device not exceeding 32 A
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Length
- 3m
- Cable Size
- 4mm²
- Colour
- Green
- Current Rating
- 13A
- Diameter
- 20mm
- Dimensions
- (L)109 mm x (Dia)20 mm x (H)47 mm
- Guarantee
- 2 Years
- Height
- 47mm
- IP Rating
- IP40
- Length
- 109mm
- Material
- Flame Retardant Polycarbonate (Outlets), Electro-Galvanised Steel (Conduit)
- Packaging Types
- Each
- Product Range
- Electrak 25 Low Noise Tinned Range
- Standards
- ASTA Standard 138, BS EN 60439-2 : 2000, BS EN 61534-22 : 2009, IEC 61534-22 : 2009, ISO 9001 : 2008, ISO 14001 : 2004, BS 7671 : 2008 A1 : 2011
- Type
- Underfloor Busbar System
- Unspsc V18
- 39131713
- Unspsc V24
- 39131713
- Weight
- 1.02kg
