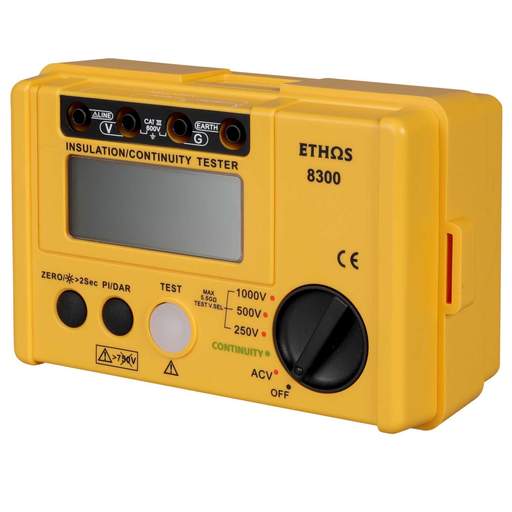

Ethos 8300 Digital Insulation and Continuity Tester

Part Code: ETHOS 8300

Stock Code: 2265-1654

Ethos 8300 Digital Insulation and Continuity Tester

Part Code: ETHOS 8300

Stock Code: 2265-1654

Delivery

7 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Continuity resistance readings from 0.00Ω - 200Ω
  • Insulation resistance measurements up to 5.5GΩ
  • Insulation tests at 250V, 500V and 1000V
  • Null function
  • Polarisation index / dielectric absorption ratio measurements
  • Data hold
  • Large backlit display and data hold function

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Ethos
Ac Voltage Measurement
750V AC
Battery Level Indicator
Yes
Battery Size
AA
Battery Type
Alkaline
Continuity Check
Yes
Continuity Range
0.01 Ω - 200 Ω
Depth
71mm
Dimensions
(L)100 mm x (W)71 mm x (D)71 mm
Display Count
1999
Display Type
LCD
Guarantee
2 Years
Insulation Resistance Measuring Range
0.10 MΩ - 5.5 GΩ
Insulation Test Voltage
250V / 500V / 1000V
Length
100mm
Number of Batteries
6
Packaging Types
Each
Product Range
Insulation and Continuity
Safety Range
CATIII 600V
Standards
BSEN 61557
Supplied With
1 x Test Leads 1 x Neck Strap 6 x AA Batteries
Type
Insulation and Continuity Tester
Unspsc V18
41113624
Weight
1kg
Width
71mm
