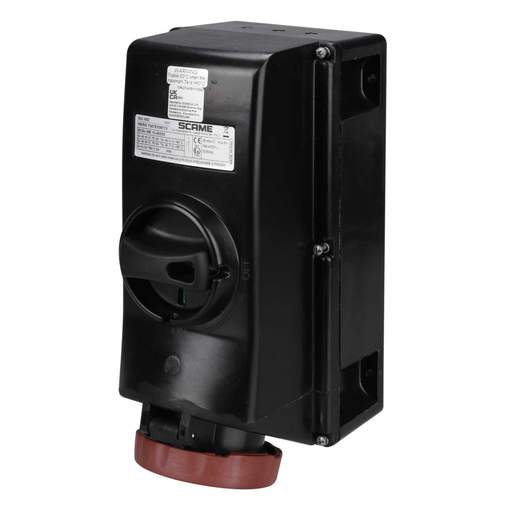

Scame Advance GRP GD Ex 16A 3P+N+E 415V Interlocked Socket
Part Code: 504.1687
Stock Code: 2266-5808
Scame Advance GRP GD Ex 16A 3P+N+E 415V Interlocked Socket
Part Code: 504.1687
Stock Code: 2266-5808
Features
- Sockets of the ADVANCE-GRP [GD] series are designed to guarantee excellent mechanical resistance to impacts and chemical agents
- Socket outlet with mechanical interlock and non-sparking switch
- Making them suitable for applications in the oil and gas, chemical and pharmaceutical industries
- Please note this socket is only compatible with Scame Ex GD plugs
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Scame
- Atex Classificatio
- II 2GD / Ex tb IIIC T80 Db
- Certification Code
- CML 21UKEX11259X
- Colour
- Red
- Current Rating
- 16A
- Depth
- 182mm
- Dimensions
- (H)260 mm x (W)130 mm x (D)182 mm
- Guarantee
- 1 Year
- Height
- 260mm
- IP Rating
- IP66
- Material
- GRP
- Mounting
- Wall
- Number of Pins
- 5
- Number of Poles
- 3P N E
- Packaging Types
- Each
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 3.14000kg
- Width
- 130mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
