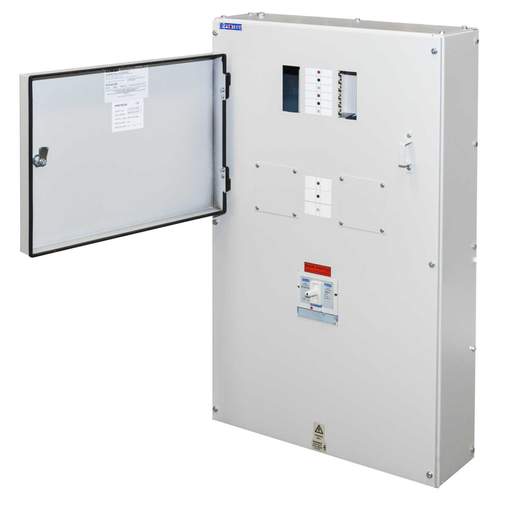

Proteus 4 Way 200A TP+N Panelboard with 200A TP Switch Disconnector Incomer
Part Code: MCX42/I200
Stock Code: 2271-7030
Proteus 4 Way 200A TP+N Panelboard with 200A TP Switch Disconnector Incomer
Part Code: MCX42/I200
Stock Code: 2271-7030
Features
- Range of MCCB up to 160A SP and TP MC range terminal capacity 70mm sq
- Range of MCBs 6A to 40A [10kA] and 50A, 63A [6kA] SP and TP terminal capacity 25mm sq to BSEN 60898
- Outgoing MCCBs can be factory fitted upon request
- Top and bottom endplates removable for ease of cutting
- Screw fixed covers
- Hinged door [removable] with metal turn catch over outgoing breakers
- 1.6mm cold rolled steel with an epoxy paint finish to RAL7035 matt grey enclosure bolted construction to BSEN 61439:Pt1 & 3:2011
- Key lock available for outgoing door - Order code XLKL
- Clear door available to order add CD to product code
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Top & bottom endplates removable for ease of cutting.
- Colour
- Light Grey RAL7035
- Compliance
- BS EN 61439-1,2 & 3
- Current Rating
- 200A
- Depth
- 170mm
- Dimensions
- (H)1000 mm x (W)600 mm x (D)170 mm
- Door Type
- Hinged Door
- Finish
- Epoxy paint to RAL7035 Matt Grey
- Guarantee
- 1 Year
- Height
- 1000mm
- IP Rating
- IP3X
- Incoming Device
- 200A TP Isolator
- Incoming Terminal Capacity
- 120mm.sq. Tunnel Terminal
- Material
- Full Cold Rolled Steel
- Mounting
- Wall Mounted
- Number of Outgoing Ways
- 4 Ways - 63A & 2 Ways - 160A
- Packaging Types
- Each
- Product Range
- MCX Range
- Standards
- BS EN 61439 Part 1 & 3
- Unspsc V18
- 39121103
- Unspsc V24
- 39121103
- Voltage Rating
- 230V 400V
- Weight
- 36.00000kg
- Width
- 600mm
