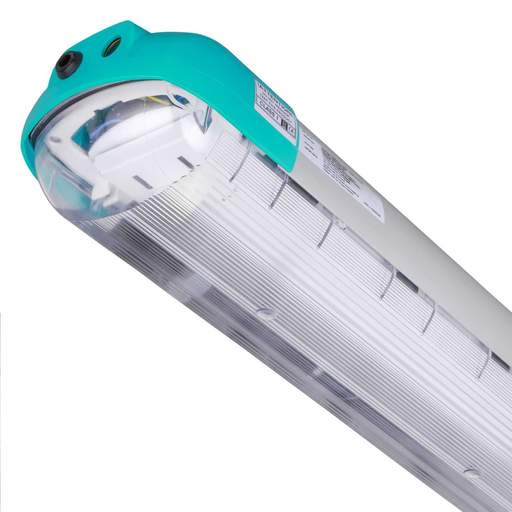

Petrel 75W 5ft LED ExE Zone 1 Fitting
Part Code: 9LED5700
Stock Code: 2282-3341
Petrel 75W 5ft LED ExE Zone 1 Fitting
Part Code: 9LED5700
Stock Code: 2282-3341
Features
- High efficiency LED luminaire suitable for zone 1 hazardous area applications
- Low maintenance high output LED light source
- Class leading light output
- Single point locking mechanism and mounting is enabled using quick fit T bolts in a channel for maximum flexibility
- Captive diffuser with isolation switch for safe installation and maintenance
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- Ex eb mb op is IIC Gb T4 Ex tc op is T86°C IIIB Dc
- Cable Entry
- 4 x M20
- Certification Code
- CML 16ATEX3397X CML 17ATEX3049X IECEx CML 16.0149X
- Depth
- 142mm
- Dimensions
- (L)1665 mm x (W)193 mm x (D)142 mm
- Fixing Centres
- 1355mm
- Guarantee
- 5 Years
- IP Rating
- IP65
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Length
- 1665mm
- Lumens Output
- 5265lm
- Material
- Aluminium / Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- -20 - 55°C
- Packaging Types
- Each
- Power Rating
- 75W
- Product Range
- 9 Series
- Standards
- EN 60079-0, EN 60079-15, EN 60079-31
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Rating
- 110V 230V
- Weight
- 2.20000kg
- Width
- 193mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
