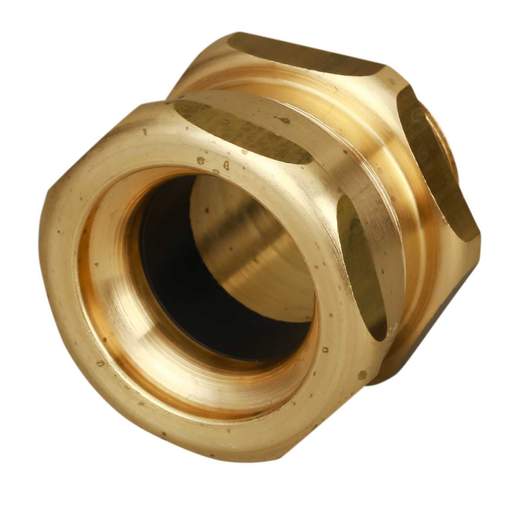

Hawke 40mm 501/421 Cable Gland Brass

Part Code: 501/421/C2/M40/B

Stock Code: 2284-3081

Hawke 40mm 501/421 Cable Gland Brass

Part Code: 501/421/C2/M40/B

Stock Code: 2284-3081

Delivery

20 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • The 501/421 cable gland provides a seal on the outer cable sheath
  • For use on non-armoured elastomer and plastic insulated cables
  • When used in Increased Safety applications, this cable gland may be used with braided cable where the braid and the outer sheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure
  • Brass NPT entries are nickel plated as standard
  • Cable glands are marked with ATEX/IECEx and c CSA us certification information as standard
  • Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
  • Deluge Protection to DTS01

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Atex Classificatio
Flameproof Exd IIC Gb, Increased Safety Exe IIC Gb, Dust Extb IIIC Db Ex II 2 GD
Certification Code
Baseefa06ATEX0056X, IECEx BAS 06.0013X
Finish
Brass
Guarantee
1 Year
IP Rating
IP68
Material
Brass
Maximum Cable Diameter
32.5mm
Operating Temperature Range
-60 - 100°C
Packaging Types
Each
Previously Known As
501/421/C2/B
Product Range
Group II Cable Glands
Standards
IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 60079-31
Thread Pitch
1.5
Thread Size
40mm
Type
501/421
Unspsc V18
39121431
Weight
0.02kg
Zone Rating
Zone 1 Zone 2
