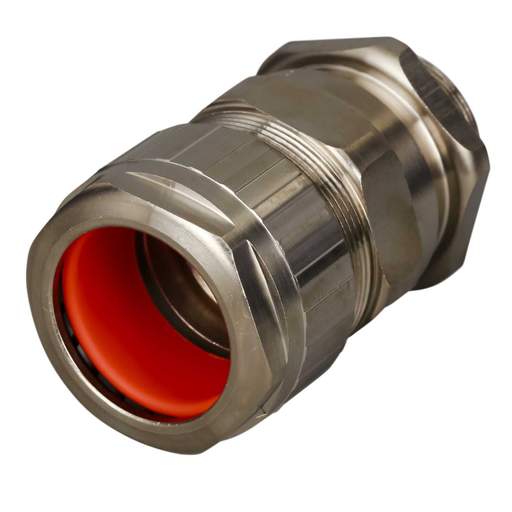

Hawke 40mm 501/453/Universal Cable Gland Nickel Plated

Part Code: 501/453/UNIV/C2/M40/NP

Stock Code: 2284-3117

Hawke 40mm 501/453/Universal Cable Gland Nickel Plated

Part Code: 501/453/UNIV/C2/M40/NP

Stock Code: 2284-3117

Delivery

12 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Outdoor or indoor use
  • For use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables
  • Provides armour clamping using one clamping arrangement for all armour/braid types
  • Provides a diaphragm seal on inner sheath of cable which will not damage cables that exhibit ‘Cold Flow’ characteristics
  • Provides an outer deluge seal to prevent moisture ingress to the cable armour/braid
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath
  • Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days)

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Atex Classificatio
Flameproof Exd IIC Gb, Increased Safety Exe IIC Gb, Dust Extb IIIC Db and ExnR IIC Gc Ex II 2 / 3GD
Certification Code
Baseefa06ATEX0057X, IECEx BAS 06.0014X
Finish
Nickel Plated
Guarantee
1 Year
IP Rating
IP68
Material
Nickel Plated
Maximum Cable Diameter
41mm
Operating Temperature Range
-60 - 80°C
Packaging Types
Each
Previously Known As
501/453/UNIV/C2/NP
Product Range
Group II Cable Glands
Standards
IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 60079-15, IEC/EN 60079-31
Thread Pitch
1.5
Thread Size
40mm
Type
501/453/UNIV
Unspsc V18
39121431
Weight
0.02kg
Zone Rating
Zone 1 Zone 2
