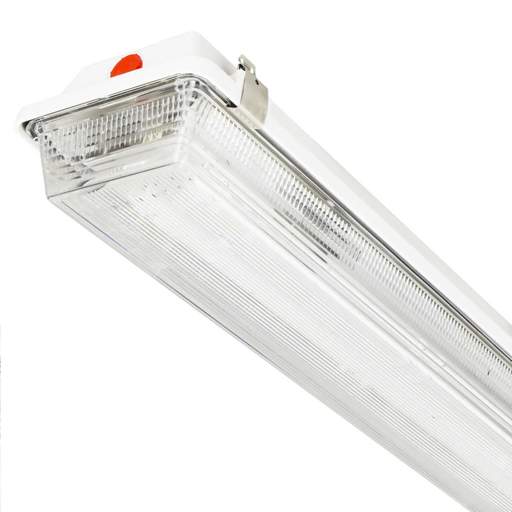

Chalmit 2 x 36w T8 Zone 2 ExnA High Frequency Emergency Fitting
Part Code: ST2N/236/BI/EM
Stock Code: 2289-8062
Chalmit 2 x 36w T8 Zone 2 ExnA High Frequency Emergency Fitting
Part Code: ST2N/236/BI/EM
Stock Code: 2289-8062
Features
- Polycarbonate diffuser
- Through wiring as standard
- High frequency control gear gives 50/60Hz operation, high power factor correction and regulation of lamp output
- Two clearance holes for M8 fasteners located on rear of body, sealing washers provided
- Access via front diffuser secured by quick release stainless steel clips
- End of life [EOL] protected
- Long life nickel cadmium batteries
- Switchable mains supply for local operation
- LED charge indicator
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- Ex II 3 GD Ex nA II T4
- Cable Entry
- 2 x 20mm
- Cap Type
- G13
- Certification Code
- Sira 06ATEX4348X, IEC Ex SIR 06.0108X
- Depth
- 106mm
- Dimensions
- (L)1312 mm x (W)172 mm x (D)106 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained
- Fixing Centres
- 800mm
- Gear Option
- High Frequency
- Guarantee
- 1 Year
- IP Rating
- IP65
- Lamp Included
- No
- Lamp Type
- T8
- Length
- 1312mm
- Material
- GRP/Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- -20 - 40°C
- Packaging Types
- Each
- Power Rating
- 72W
- Product Range
- Sterling II
- Standards
- EN 60079-10-1, EN 60079-10-2, EN 60079-14, EN 60529
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Rating
- 230V
- Weight
- 5.6kg
- Width
- 172mm
- Zone Rating
- Zone 2
