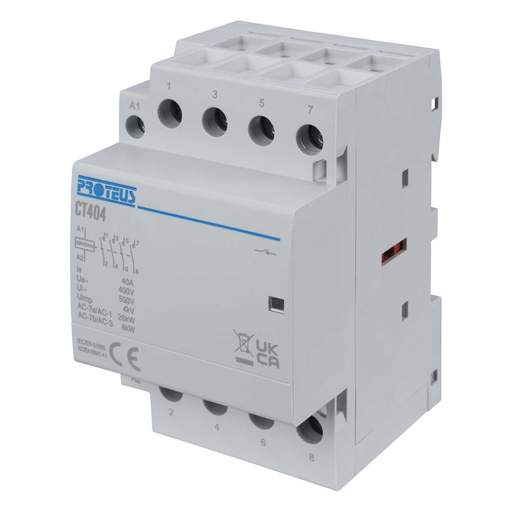

Proteus 40A 4 Pole 230V 3 Module NO Contactor
Part Code: CT404
Stock Code: 0013-9408
Proteus 40A 4 Pole 230V 3 Module NO Contactor
Part Code: CT404
Stock Code: 0013-9408
Delivery
10 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Provides a method of remotely switching single and three phase loads
- Ideal for switching heating, lighting and ventilation circuits
- Use in conjunction with REC supply off-peak tariffs
- Suitable for mounting on a standard DIN rail
- Fully compatible with Proteus Consumer units and small enclosures
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 230V
- Compliance
- 93/68/EEC
- Contact Configuration
- 4 NO
- Current Rating
- 40A
- Depth
- 65.5mm
- Dimensions
- (H)84.5 mm x (W)54 mm x (D)65.5 mm
- Guarantee
- 1 Year
- Height
- 84.5mm
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- Contactors
- Standards
- IEC 60947-4-1, EN 60947-4-1, IEC 61095, EN 61095
- Unspsc V18
- 39121529
- Voltage Rating
- 230V
- Weight
- 0.44kg
- Width
- 54mm
