Crouse-Hinds nLLK15 LED 600 Zone 2 / 22 Hazardous Area Light Fitting
Part Code: 13475208031
Stock Code: 2290-3408
Crouse-Hinds nLLK15 LED 600 Zone 2 / 22 Hazardous Area Light Fitting
Part Code: 13475208031
Stock Code: 2290-3408
Features
- ONLY certified when fitted with approved Aura UltiLED tubes [sold separately]
- Zone 2 and 22 hazardous area light fitting
- Replaceable driver and light source
- Easy maintenance by double sided safety lock
- 4 x M20 metal thread entries

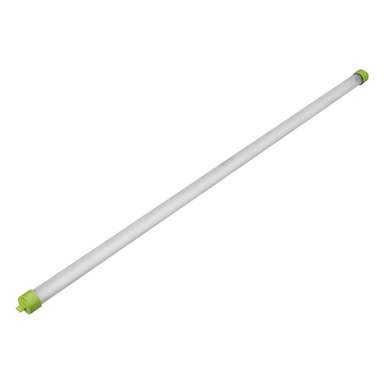

- Requires 2 x Aura UltiLED T5 8W tubes '22475902002' [not included]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- CCH 15 ATEX 1044
- Cable Entry
- 4 x M20
- Cap Type
- G5
- Certification Code
- Ex II 3 G Ex ec IIC T4 Gc, Ex II 3 D Ex tc IIIC T80 °C Dc
- Class Type
- Class 1
- Colour
- Light Grey RAL7035
- Depth
- 130mm
- Dimensions
- (L)760 mm x (W)188 mm x (D)130 mm
- Emergency
- No
- Fixing Centres
- 400mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Ik Rating
- IK10
- Lamp Included
- No
- Lamp Type
- LED Tubes
- Length
- 760mm
- Material
- GRP / Polycarbonate
- Mounting
- Surface
- Number of Lamps
- 2
- Operating Temperature Range
- -25 - 45°C
- Packaging Types
- Each
- Power Rating
- 16W
- Previously Known As
- 1 3475 208 031
- Product Range
- nLLK 15 LED
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Rating
- 230V
- Weight
- 2.20000kg
- Width
- 188mm
- Zone Rating
- Zone 2 Zone 22
