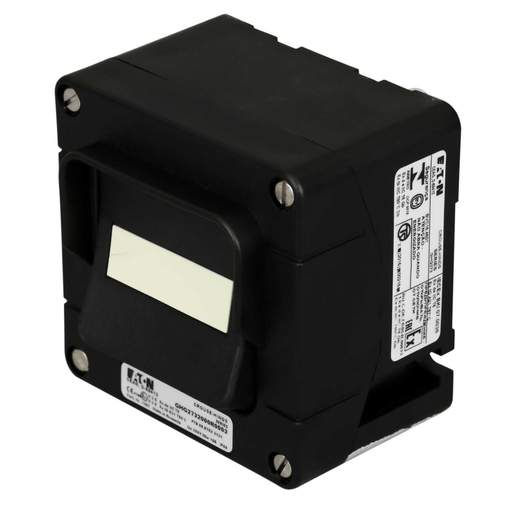

Crouse-Hinds CEAG 16A 2 Pole Zone 1 Light Switch
Part Code: GHG2732000R0003
Stock Code: 2290-3420
Crouse-Hinds CEAG 16A 2 Pole Zone 1 Light Switch
Part Code: GHG2732000R0003
Stock Code: 2290-3420
Features
- Suitable for use in zone 1 or 2 hazardous areas
- 2 x M20 cable entries complete with GRP glands for unarmoured cable
- Large grounding plate
- Captive cover screws
- Protective collar for inadvertent operation
- Large actuator surface allows for operation while wearing work gloves
- Labyrinth seal to guarantee the degree of protection IP66
- The toggle has a luminescent label to locate switch in dark areas
- Cable entry from the top is made possible by turning the base
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- PTB 98 ATEX 3121, IECEx BKI 07.0036
- Cable Entry
- 2 x M20
- Certification Code
- Ex II 2 G Ex de IIC T6 / Ex II 2 D Ex tD A21 IP66 T80 °C
- Colour
- Black
- Current Rating
- 16A
- Depth
- 64mm
- Dimensions
- (H)85 mm x (W)85 mm x (D)64 mm
- Guarantee
- 1 Year
- Height
- 85mm
- IP Rating
- IP66
- Material
- Polyamide
- Number of Poles
- 2 Pole
- Operating Temperature Range
- -55 - 55°C
- Packaging Types
- Each
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 230V
- Weight
- 0.65000kg
- Width
- 85mm
