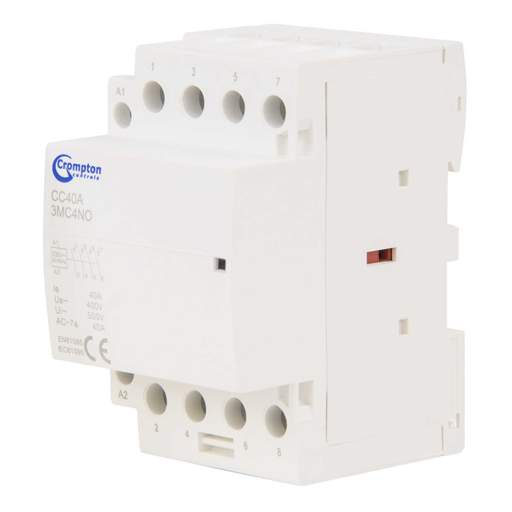

Crompton 40A 4 Pole 230V 3 Modular Contactor 4 NO Contacts

Part Code: CC40A3MC4NOBP

Stock Code: 2296-3909

Crompton 40A 4 Pole 230V 3 Modular Contactor 4 NO Contacts

Part Code: CC40A3MC4NOBP

Stock Code: 2296-3909

Delivery

3 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • For controlling remote switching and protecting electrical installations
  • Ideally suited to connecting and breaking non-inductive or low inductive loads, resistance heaters, household appliances or similar
  • Suitable for use with DIN rail mounting enclosures (sold separately)
  • Note: Not suitable for lighting applications

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Coil Voltage
230V AC
Colour
Light Grey
Compliance
CE
Contact Configuration
4 NO
Current Rating
40A
Depth
68mm
Dimensions
(H)85 mm x (W)54 mm x (D)68 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
85mm
Material
Plastic
Mounting
DIN Rail
Number of Modules
3
Number of Poles
4 Pole
Packaging Types
Pack
Product Range
CC Range
Standards
EN 61095, IEC 61095
Unspsc V18
39121529
Voltage Rating
400V
Weight
0.306kg
Width
54mm
