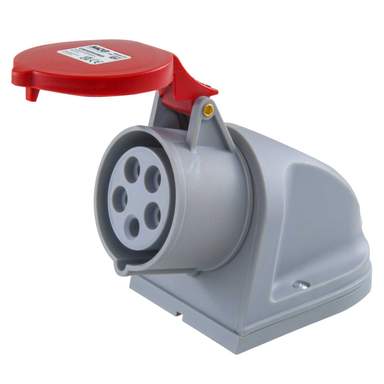

MCG 32A 3P+N+E 415V Wall Mounted Socket IP44 c/w 25mm Gland
Part Code: CXN325P415W25
Stock Code: 2299-8736
MCG 32A 3P+N+E 415V Wall Mounted Socket IP44 c/w 25mm Gland
Part Code: CXN325P415W25
Stock Code: 2299-8736
Delivery
173 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Manufactured from thermoplastic - suitable for general use
- Conforms to IEC/EN 60309-1/2
- Fast and simple assembly and wiring, cuts time and costs
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Safe and reliable
- Typical operating temperature -25°C to 50°C
- Screwless cable grip
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Top Gland Entry - M25 x 1.5 Rear knockout
- Colour
- Red
- Compliance
- UKCA, CE
- Current Rating
- 32A
- Depth
- 118mm
- Dimensions
- (H)151 mm x (W)85 mm x (D)118 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 151mm
- IP Rating
- IP44
- Material
- Thermoplastic
- Mounting
- Wall
- Number of Poles
- 3P+N+E
- Packaging Types
- Each
- Standards
- IEC/EN 60309-1/2
- Supplied With
- 25mm Gland
- Unspsc V18
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.28kg
- Width
- 85mm
