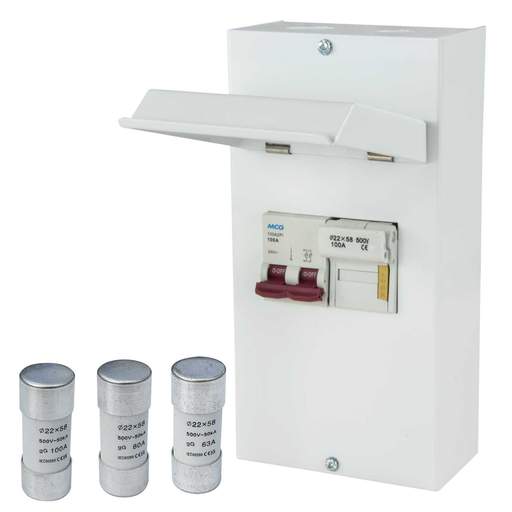

MCG SP+N Switch Fuse
Part Code: MCGSFML
Stock Code: 2302-9522
MCG SP+N Switch Fuse
Part Code: MCGSFML
Stock Code: 2302-9522
Features
- Complete with 2 pole 100A isolator
- Supplied with 3 gG fuses: 63A, 80A and 100A
- DIN Rail and 5 terminal Earth Bar
- M20 and M25 knockouts top and bottom
- Captive screws on removal lid and raised key hole fixing points
- IP20 rated
- Complies to BS EN 61439-3
- Quality steel construction [1mm thick] with flap lid
- Finished to RAL 9010 polyester powder coating
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockouts [M20 and M25]
- Compliance
- UKCA, CE
- Current Rating
- 63A 80A 100A
- Depth
- 82mm
- Dimensions
- (H)225 mm x (W)115 mm x (D)82 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 225mm
- IP Rating
- IP20
- Incoming Terminal Capacity
- 35mm²
- Material
- Steel
- Mounting
- Surface
- Number of Poles
- Double Pole
- Outgoing Terminal Capacity
- 35mm²
- Packaging Types
- Box
- Standards
- BS EN 61439-3 / IEC 60269
- Supplied With
- 2 Pole 100A Isolator, Fuse Holder and 63A, 80A and 100A type gG general purpose Fuses
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 230V
- Weight
- 0.38000kg
- Width
- 115mm
