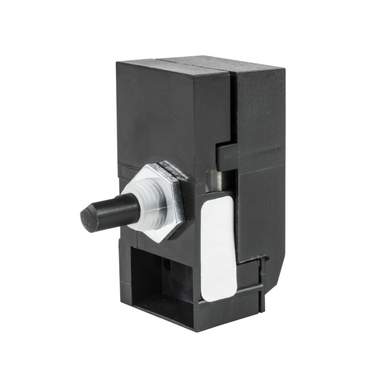

Varilight 180W 2 Way LED Replacement Dimmer Module
Part Code: MKP180
Stock Code: 2313-1720
Varilight 180W 2 Way LED Replacement Dimmer Module
Part Code: MKP180
Stock Code: 2313-1720
Features
- To replace dimmer modules in an already existing product
- V-Com dimming technology
- Leading-edge control
- Soft start feature and intelligent overload protection
- Suitable for many dimmable LED lamps
- Recommended back box depth: 35mm
- Maximum load rating: LED; 180W [Halogen; 180W]
- Intended applications: Domestic lighting circuits [Max 20 LEDs]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Varilight
- Colour
- Black
- Compliance
- UKCA, CE
- Current Rating
- 0.78A
- Depth
- 42mm
- Dimensions
- (H)53 mm x (W)28 mm x (D)42 mm
- Finish
- Black
- Guarantee
- Lifetime
- Height
- 53mm
- Lamp Type
- LED GLS Halogen
- Mounting
- Modular
- Mounting Depth
- 35mm
- Number of Gangs
- 1
- Number of Modules
- 1
- Number of Terminals
- 3
- Number of Ways
- 2
- Operating Load
- 15 - 180W
- Operation Type
- Push On / Off
- Packaging Types
- Bag
- Power Rating
- 180W
- Product Range
- V-Com
- Standards
- BS EN 60669-2-1
- Terminal Capacity Live Neutral
- 3 x 1.5mm²
- Unspsc V18
- 39122206
- Unspsc V24
- 39122206
- Voltage Rating
- 250V
- Weight
- 0.50000kg
- Width
- 28mm
