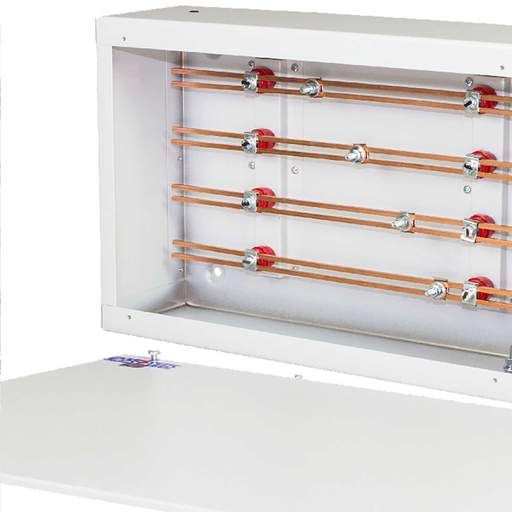

Proteus 200A (610mm Width) Busbar Chamber Grey
Part Code: 200BC2
Stock Code: 0014-0542
Proteus 200A (610mm Width) Busbar Chamber Grey
Part Code: 200BC2
Stock Code: 0014-0542
Features
- Busbar chambers are produced in 100, 200, 315, 400, 630 and 800A ratings
- Also in four nominal widths 610, 915, 1220 and 1830mm
- All units in the range share the same height and depth dimensions
- Twin copper busbars are located in the same positions throughout the range
- Twin bar design for easy positioning of cables
- Fully rated neutral

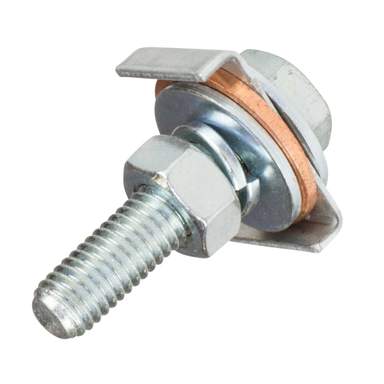

- One set of 4 clamps supplied with each chamber as standard
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Busbar Rating
- 200A
- Current Rating
- 200A
- Depth
- 190mm
- Dimensions
- (H)400 mm x (W)610 mm x (D)190 mm
- Guarantee
- 1 Year
- Height
- 400mm
- IP Rating
- IP31
- Material
- Full Cold Rolled Steel
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- Busbar Chambers
- Standards
- BS EN 61439-1
- Unspsc V18
- 39121117
- Unspsc V24
- 39121117
- Voltage Rating
- 400V
- Weight
- 14.00000kg
- Width
- 610mm
