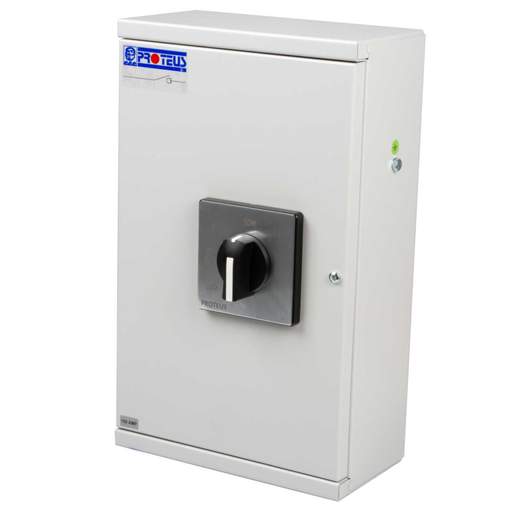

Proteus Euro 100A TP+N Metal Isolator Switch Disconnector
Part Code: E100TN
Stock Code: 0014-0740
Proteus Euro 100A TP+N Metal Isolator Switch Disconnector
Part Code: E100TN
Stock Code: 0014-0740
Features
- This range of wall mounting switch disconnectors are rated from 20A to 200A
- Triple Pole and Neutral
- Designed to meet the requirements of industrial and commercial installations
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Top and Bottom
- Current Rating
- 100A
- Depth
- 125mm
- Dimensions
- (H)383 mm x (W)235 mm x (D)125 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Handle Type
- Rotary
- Height
- 383mm
- IP Rating
- IP31
- Lockable
- Yes
- Material
- Full Cold Rolled Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Product Range
- Euro Switchgear Range
- Standards
- BS EN 60947-3
- Terminal Capacity
- 35mm²
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 400V
- Weight
- 3.00000kg
- Width
- 235mm
