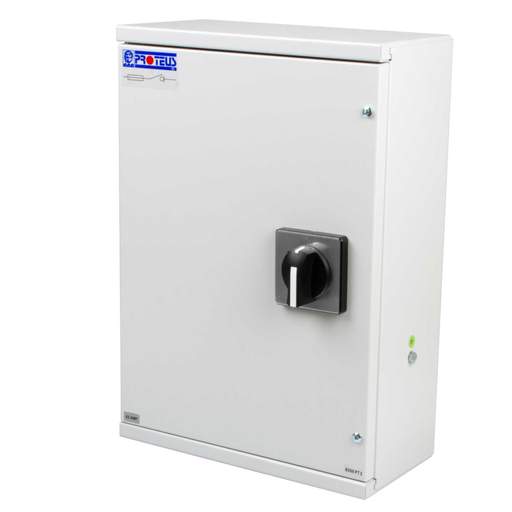

Proteus Euro 63A TP+N Metal Switch Fuse
Part Code: EF63TN
Stock Code: 0014-0800
Proteus Euro 63A TP+N Metal Switch Fuse
Part Code: EF63TN
Stock Code: 0014-0800
Features
- Fully insulated high visibility rotary operating handle
- Padlockable in OFF position for security
- Finger protected cable terminations
- Epoxy powder coat finish
- Robust heavy duty steel enclosure
- Folded construction for extra rigidity
- Flush fitting door, removable for ease of installation
- Removable top and bottom endplates [1 blank, 1 with knock-outs]
- Fully rated BS88 fuses fitted
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 63A
- Depth
- 145mm
- Dimensions
- (H)420 mm x (W)300 mm x (D)145 mm
- Door Type
- Flush Fitting; Removable
- Guarantee
- 1 Year
- Handle Type
- Fully Insulated Rotary
- Height
- 420mm
- IP Rating
- IP31
- Lockable
- Yes
- Material
- Full Cold Rolled Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Power Rating
- 18.5kW
- Product Range
- Euro Switchgear Range
- Standards
- BS EN 60439-3
- Supplied With
- Fully Rated Fuses
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 400V
- Weight
- 5.00000kg
- Width
- 300mm
- kW Rating
- 18.5kW
