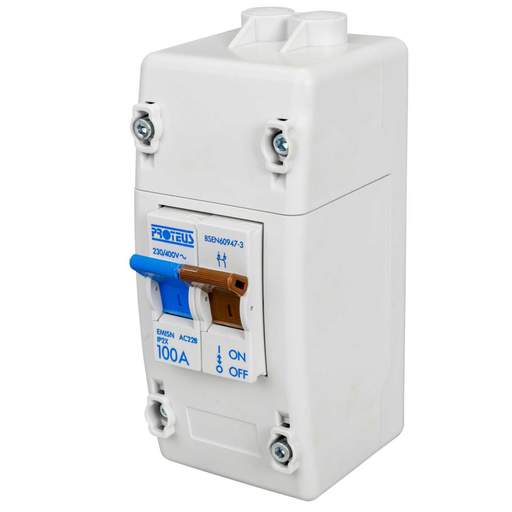

Proteus 100A DP Electricity Meter Isolator Switch - LHS Neutral - Twin Terminals
Part Code: EMISN
Stock Code: 2341-3846
Proteus 100A DP Electricity Meter Isolator Switch - LHS Neutral - Twin Terminals
Part Code: EMISN
Stock Code: 2341-3846
Features
- Meter isolator switch
- Unique patented twin screw terminal
- 3mm hex drive for all screws
- Lockable cover fixing screws
- Round cable - round hole
- Blanks for all cable entries including 16mm² strain relief function
- Reversible line / load labels
- Left hand side neutral
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 100A
- Depth
- 82mm
- Dimensions
- (H)145 mm x (W)59 mm x (D)82 mm
- Guarantee
- 1 Year
- Height
- 145mm
- Incoming Terminal Capacity
- 35 mm²
- Material
- High Impact Polystyrene
- Mounting
- Surface
- Number of Modules
- 2
- Number of Poles
- Double Pole
- Outgoing Terminal Capacity
- 35 mm²
- Packaging Types
- Each
- Product Range
- Single Phase Isolator
- Short Circuit Rating
- 2kA
- Standards
- BS EN 60947-3
- Terminal Capacity
- 35mm²
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 230V
- Weight
- 0.40500kg
- Width
- 59mm
