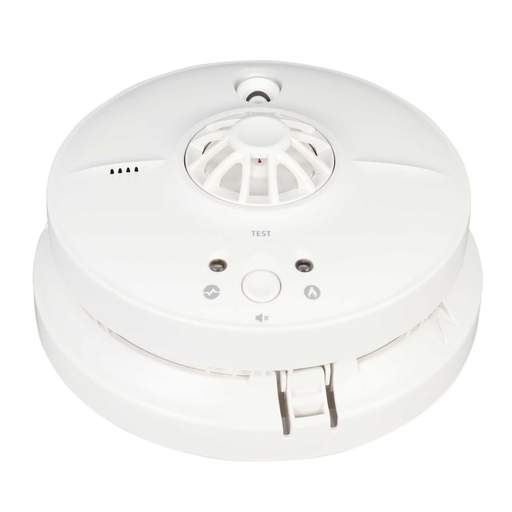

FireAngel 230V Mains Heat Alarm with Base and Backup Battery
Part Code: HW1-PF-T
Stock Code: 2390-9560
FireAngel 230V Mains Heat Alarm with Base and Backup Battery
Part Code: HW1-PF-T
Stock Code: 2390-9560
Features
- 230V mains powered heat alarm with 9V zinc carbon battery back up
- Improved push fit base for quicker installations
- Class A2 detection 54°C to 70°C
- LED operating indicators - power, fault and Alarm
- Low battery warning indicator
- Multi-alarm interconnect up to 12 smoke [SW1-PF], heat [HW1-PF] and CO [CW1-PF] units
- Safety clip feature to prevent installation of heat alarm without battery installed
- 5 year warranty
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Base Required
- Base Supplied with Detector
- Battery Back Up
- Yes
- Battery Size
- PP3
- Battery Type
- Zinc Carbon
- Colour
- White
- Compliance
- CE
- Decibel Rating
- 85 dB[A] @ 3 m
- Depth
- 49mm
- Diameter
- 126mm
- Dimensions
- (Dia)126 mm x (D)49 mm
- Guarantee
- 5 Years
- Hush Facility
- Yes
- Interconnectable
- Yes
- Mounting
- Ceiling
- Neon
- Yes
- Number of Batteries
- 1
- Operating Temperature Range
- 54-70°C
- Packaging Types
- Each
- Sensor Type
- Thermistor
- Standards
- BS 5446-2:2003
- Test Facility
- Yes
- Unspsc V18
- 46191502
- Unspsc V24
- 46191502
- Voltage Rating
- 230V
- Weight
- 0.21kg
