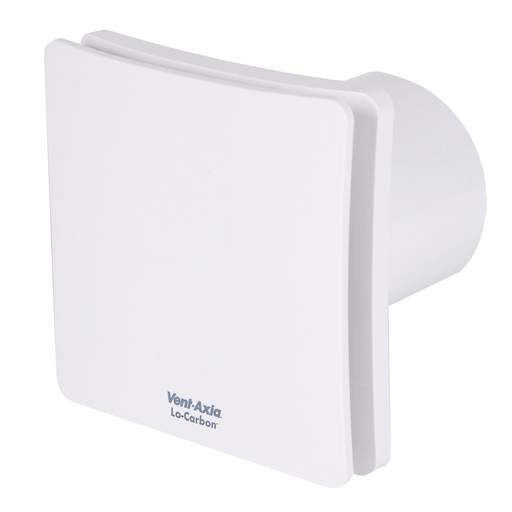

Vent Axia Centra T Lo Carbon dMEV Fan with Timer
Part Code: 473825
Stock Code: 2399-9305
Vent Axia Centra T Lo Carbon dMEV Fan with Timer
Part Code: 473825
Stock Code: 2399-9305
Features
- Ideal for bathroom and toilet applications
- Discreet, tasteful styling
- Continuously on trickle setting and may be boosted by the switched live input which activates the adjustable timer [5-30 minutes]
- Complies with parts L and F of the building regulations
- Suitable for wall, ceiling, panel and window mounting
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 21.6 / 32.4 / 54 m³/h
- Airflow Litresper Second
- 6 / 9 / 15 l/s
- Automatic Shutter
- No
- Colour
- White
- Decibel Rating
- 10.8 / 15.5 / 25.2 dB[A] @ 3 m
- Depth
- 150mm
- Dimensions
- (H)160 mm x (W)160 mm x (D)150 mm
- Ducting Size
- 100mm
- Guarantee
- 5 Years
- Height
- 160mm
- Hole Size
- 100mm
- Humidistat
- No
- IP Rating
- IPX4
- Mounting
- Wall / Ceiling / Panel / Window
- Number of Speeds
- 3
- Operation Type
- Timer
- Packaging Types
- Each
- Power Rating
- 1.4W 1.6W 2.4W
- Product Range
- Lo-Carbon Centra
- Timer Range
- 5 - 30 mins
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 0.69000kg
- Width
- 160mm
