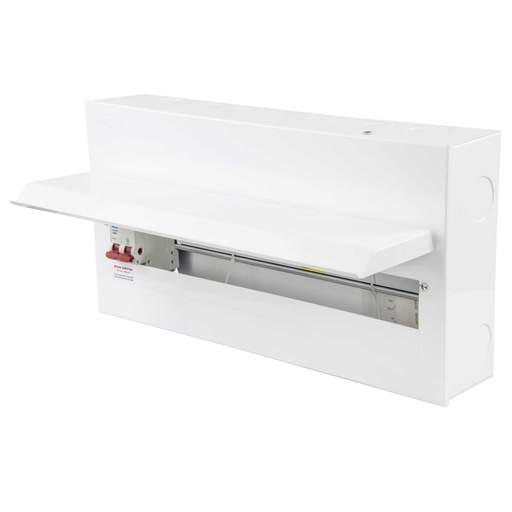

MCG 20 Way 100A Isolator Incomer Metal Clad Consumer Unit

Part Code: MMSB20

Stock Code: 2403-3823

MCG 20 Way 100A Isolator Incomer Metal Clad Consumer Unit

Part Code: MMSB20

Stock Code: 2403-3823

Delivery

Back in stock 31st July

Features

  • Complete with fully fitted and pre-wired 2 pole 100A incoming isolator
  • Ferruled cable ends for secure connections
  • Fully enclosed metal construction body with drop-down metal cover
  • Raised keyholes for secure easy installation
  • Multiple circular cable entry knockouts top, bottom and sides [M25, M32 and M40] plus rear aperture/rounded cable entries
  • Finished in white polyester powder coating to RAL9010
  • Retained screws
  • BS 7671 Amendment 3 and BS EN 61439-3 compliant
  • IP20 protection

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Cable Entry
Knockouts [M25, M32 and M40]
Colour
White
Compliance
UKCA, CE
Current Rating
100A
Depth
110mm
Dimensions
(H)235 mm x (W)450 mm x (D)110 mm
Finish
Powder Coated
Guarantee
1 Year
Height
235mm
IP Rating
IP20
Incoming Device
100A Isolator
Material
Steel
Mounting
Surface
Number of Modules
22
Number of Outgoing Ways
20
Packaging Types
Box
Standards
BS 7671 Amendment 3, BS EN 61439-3
Supplied With
1 x 100A 2 Pole Isolator
Surge Protection Fitted
No
Surge Protection Ready
No
Type
Isolator Controlled
Unspsc V18
39121110
Voltage Rating
230V
Weight
4kg
Width
450mm
