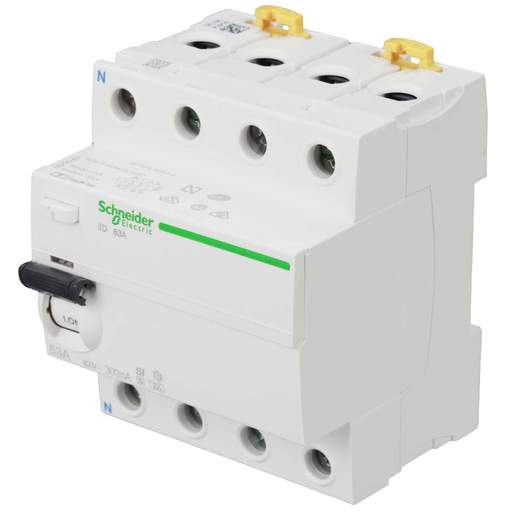

Schneider Acti9 63A 4 Pole 300mA Type A - SI Selective Time Delay RCD
Part Code: A9R35463
Stock Code: 2419-4344
Schneider Acti9 63A 4 Pole 300mA Type A - SI Selective Time Delay RCD
Part Code: A9R35463
Stock Code: 2419-4344
Features
- Type A - SI [Super Immunised] RCD, designed to avoid nuisance tripping or non-tripping in case of polluted network, lightning effect, high frequency currents, RF waves, etc
- VISI-SAFE for safe operation and maintenance work
- Class-2 insulation
- VisiTrip detects faulty outgoers quickly and reduces intervention time
- Fully immune earth leakage protection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 63A
- Dc Sensitive
- Yes
- Depth
- 73.5mm
- Dimensions
- (H)91 mm x (W)72 mm x (D)73.5 mm
- Guarantee
- 18 Months
- Height
- 91mm
- Incoming Terminal Capacity
- 35mm²
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- 4 Pole
- Outgoing Terminal Capacity
- 35mm²
- Packaging Types
- Each
- Product Range
- Acti9
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- EN/IEC 61008-1
- Time Delay
- Yes
- Tripping Sensitivity
- 300mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 415V
- Weight
- 0.36600kg
- Width
- 72mm
