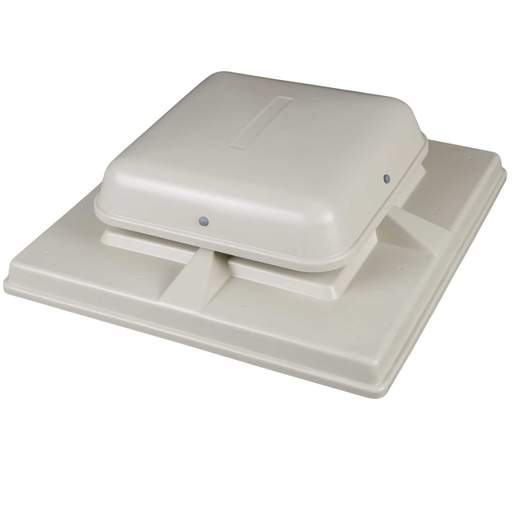

Domus Ventilation 300mm 12" D Series Flat Roof Fan Kit
Part Code: DX12FR
Stock Code: 2420-3131
Domus Ventilation 300mm 12" D Series Flat Roof Fan Kit
Part Code: DX12FR
Stock Code: 2420-3131
Features
- Flat roof fan
- Fan ensures a comprehensive and practical application
- Very quiet running
- Comes in complete kit for installation
- Dynamically balanced motor and impeller
- Robust construction
- High performance with low energy usage
- The fan is IP24 splash proof approved with the motor rated at IP44
- Can be installed via a separately wired fused spur or operated via the optional DX-CON remote controller allowing supply or extract
- Sensors are available as plug in units
- Control up to 2 x 12" fans from one controller
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Domus Ventilation
- Airflow Litresper Second
- 358 l/s
- Decibel Rating
- 49 dB[A] @ 3 m
- Depth
- 172mm
- Dimensions
- (L)420 mm x (W)420 mm x (D)172 mm
- Guarantee
- 2 Years
- IP Rating
- IP24
- Length
- 420mm
- Material
- ABS Polymer
- Mounting
- Roof
- Packaging Types
- Each
- Power Rating
- 107W
- Product Range
- D Series
- Size
- 300 mm
- Supplied With
- Roof Terminal, Spacer, Fan Unit, Internal Grille and Fixings
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 11.00000kg
- Width
- 420mm
